| Model | Product Name |
Product size（mm) |
Rated Voltage(V) |
Current Consumption(mA) |
SPL(dB) | Operating Voltage(V) |
Operating Temperature(℃) |
Weight(g) | Carton Size(cm) |
Quantity(pcs) | Gross Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

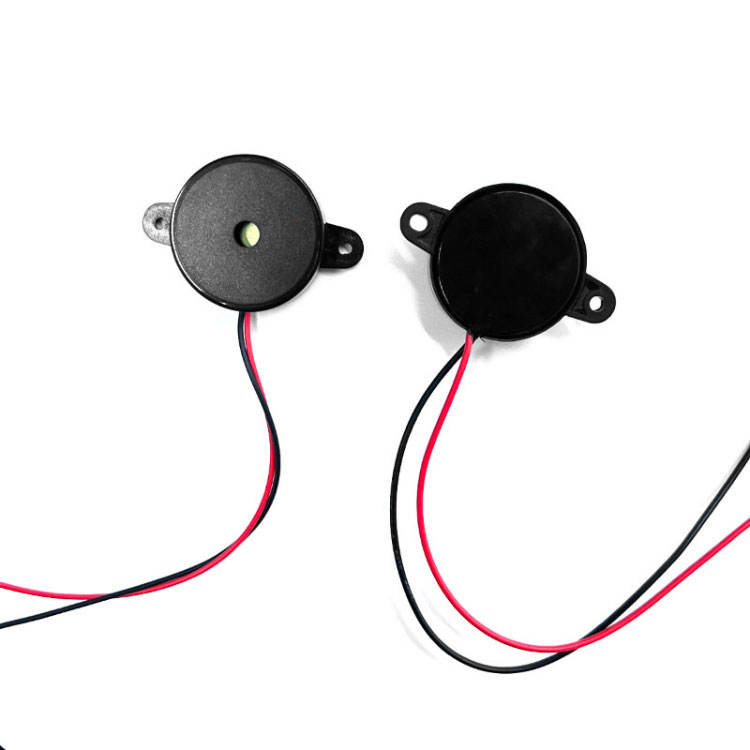

Piezo Active Buzzer YN-YDY3010-3309W | 30.3*9.7mm | 9V | ≤15mA | ≥90dB | 5~16V | -20℃～+70℃ | / | / | / | / |
 |
Piezo Active Buzzer YN-YDY3019-3512P-15 | 30.2*19.2mm | 12V | ≤12mA | ≥100dB | 3~20V | -40～+85℃ | 9.3g | / | / | / |
 |
Magnetic Active Buzzer YN-DCY12075-2712P-7.6 | 12*7.5mm | 12V | ≤30mA | ≥85dB | 9~13V | -20+60℃ | 1.5g | / | / | / |
 |
Cavity Speaker YN2030-0801 | 30*20*5.5mm | 1W | / | 102±3dB | 1.5W | -20~+55℃ | 5.5g | / | / | 8±15%Ω |
 |
Dynamic Speaker YN1511-08005WD100 | 15*11*3.3mm | 0.5W | / | 85±3dB | 0.7W | -20~+60℃ | 1.2g | / | / | 8±20%Ω |
 |
Mechanical Active Buzzer YN-JXY2317W105 | 23.5*16.5*H15.5mm | 1.2/3/6/12V | ≤30mA | ≥85dB | 0.5~1.5/2~4/5~7/10~13V | -20~+60℃ | 7.6g | / | / | / |
 |
SMD Speaker YN1304S-08007 | 13*13*4mm | 0.7W | / | 88±3dB | 1W | -30~+65℃ | 1g | / | / | 8±20%Ω |
 |

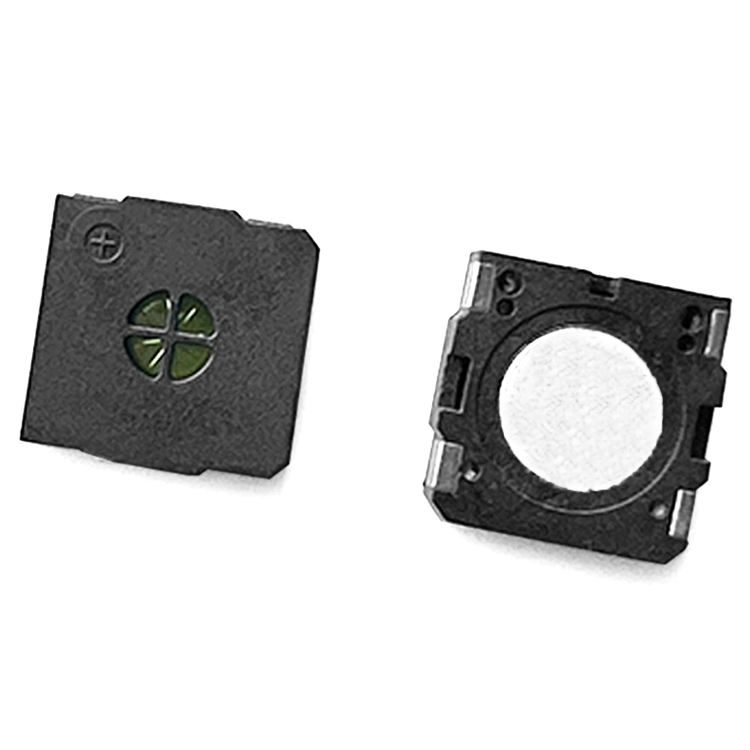

SMD Speaker YN1504S-08005 | 15*15*4mm | 0.5W | / | 87±3dB | 0.8W | -30~+85℃ | 1.5g | / | / | 8±15%Ω |
 |

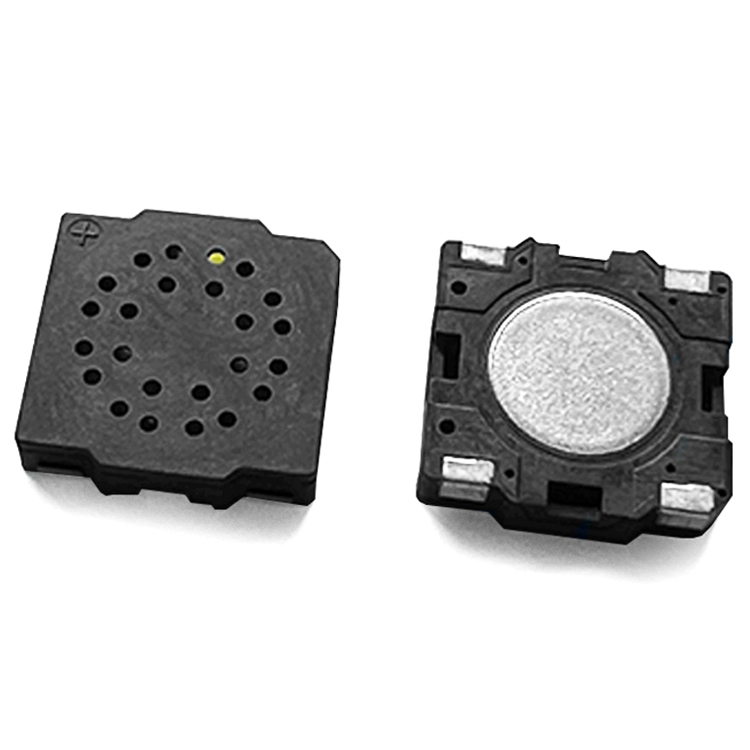

SMD Speaker YN20045S-08008 | 20*20*4.5mm | 0.8W | / | 90±3dB | 1W | -30~+85℃ | 1.5g | / | / | 8±15%Ω |
 |
Cavity Speaker YN5822-0402WD400 | 58mm*22.5mm*10mm | 2W | / | 90±3dB | 3W | -30~+70℃ | 18.5g | / | / | 4±15%Ω |
 |
Dynamic Speaker YN36DT-0802WD-100 | 36*5mm | 2W | / | 85±3dB | 3W | -30~+65℃ | 8.2g | / | / | 8±20%Ω |
 |
Magnetic Active Buzzer YN-DCY12095 | 12*9.5mm | 3/5/12V | ≤30mA | ≥85dB | 2~4/4~7/10~14V | -20~+60℃ | 2g | / | / | / |
