| Model | Product Name |
Product size（mm) |
Rated Voltage(V) |
Current Consumption(mA) |
SPL(dB) | Operating Voltage(V) |
Operating Temperature(℃) |
Weight(g) | Carton Size(cm) |
Quantity(pcs) | Gross Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

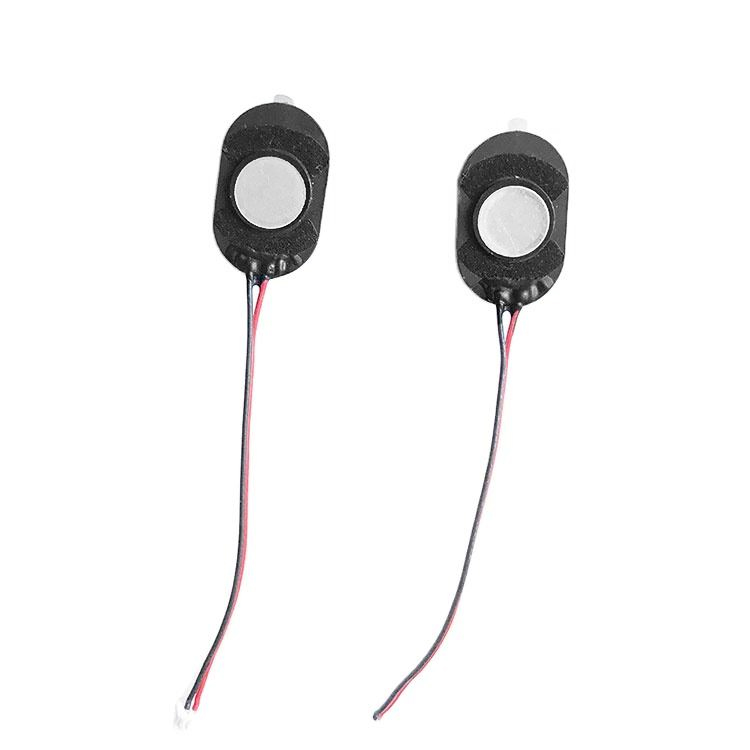

Dynamic Speaker YN2415-0801WD-65 | 24*15*4.8mm | 1W | / | 93±3dB | 1.2W | -20~+50℃ | 7g | / | / | 8±20%Ω |
 |
Cavity Speaker YN3015-0801WD110 | 30*15*7.5mm | 0.8W | / | 82±3dB | 1W | -30~+60℃ | 6.5g | / | / | 8±15%Ω |
 |
Dynamic Speaker YN3020-08015DW150 | 30*20*7mm | 1.5W | / | 86±3dB | 2W | -30～+70℃ | 6g | / | / | 8±15%Ω |
 |
Dynamic Speaker YN2831-0403WD-100 | 30.7*27.9*15mm | 3W | / | 89±3dB | 5W | -30~+70℃ | 9.85±0.15g | / | / | 4±15%Ω |
 |

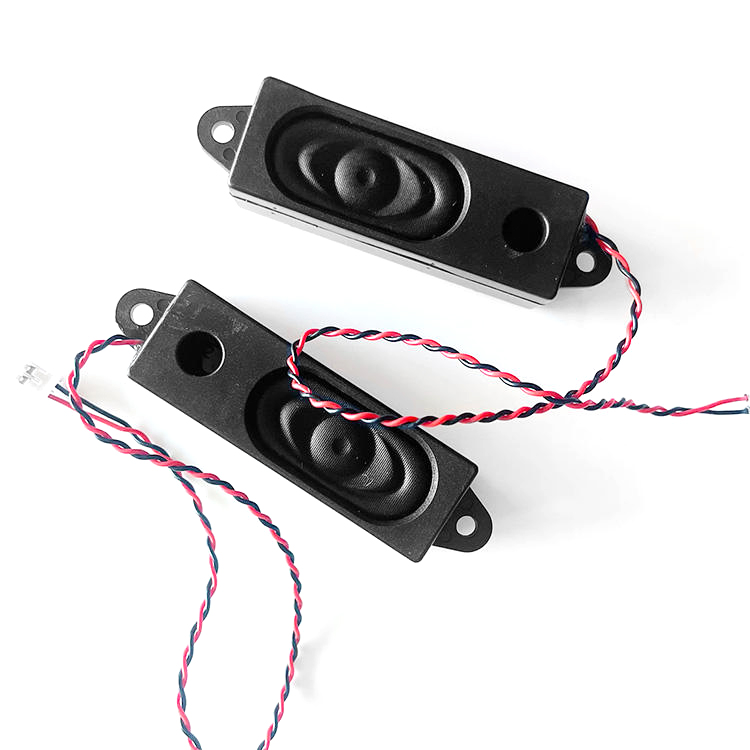

Dynamic Speaker YN5318-08015WD300 | 53*18*14.4mm | 1.5W | / | 92±3dB | 2W | -30～+70℃ | 9g | / | / | 4±15%Ω |
 |

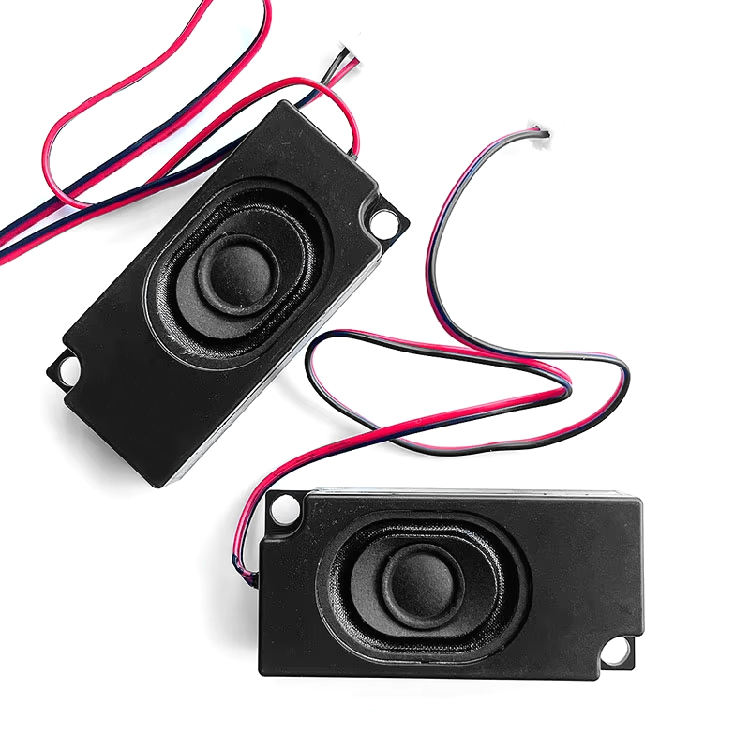

Dynamic Speaker YN7033-0802WD120 | 70*33*16mm | 2W | / | 102±3dB | 3W | -20～+60℃ | 22g | / | / | 8±10%Ω |
 |

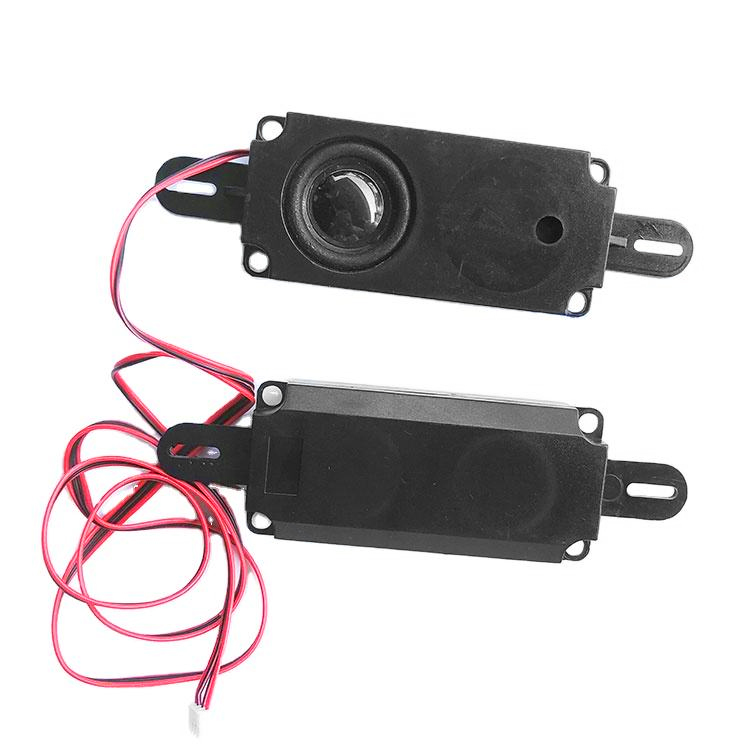

MicroDynamicBox YN10045-0805WD750 | 100*45*21mm | 5W | / | 89±3dB | 6W | -20~+60℃ | 35g | / | / | 8±15%Ω |
 |

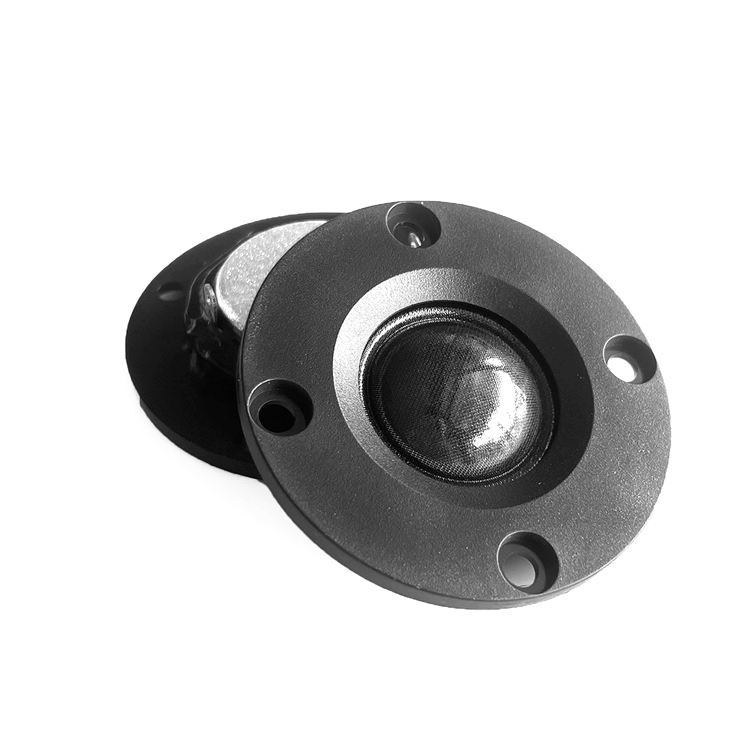

Dynamic Speaker YN5212-0810 | 52*12mm | 10W | / | 78±3dB | 10.5W | -25~+60℃ | 33g | / | / | 8±15%Ω |
 |

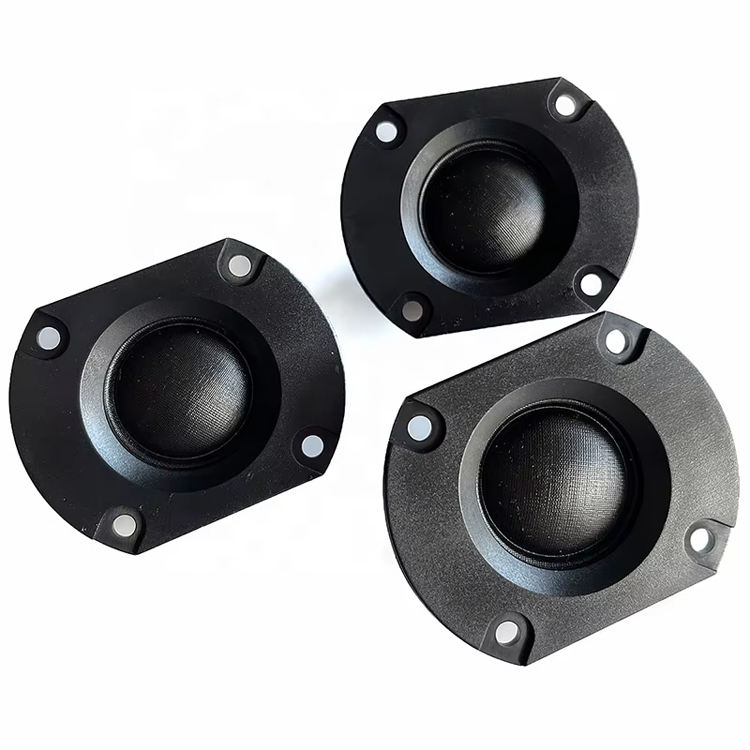

Dynamic Speaker YN5141-0810 | 51.3*40.6*13.6mm | 10W | / | 80±3dB | 10.5W | / | 33g | / | / | 8±15%Ω |
 |

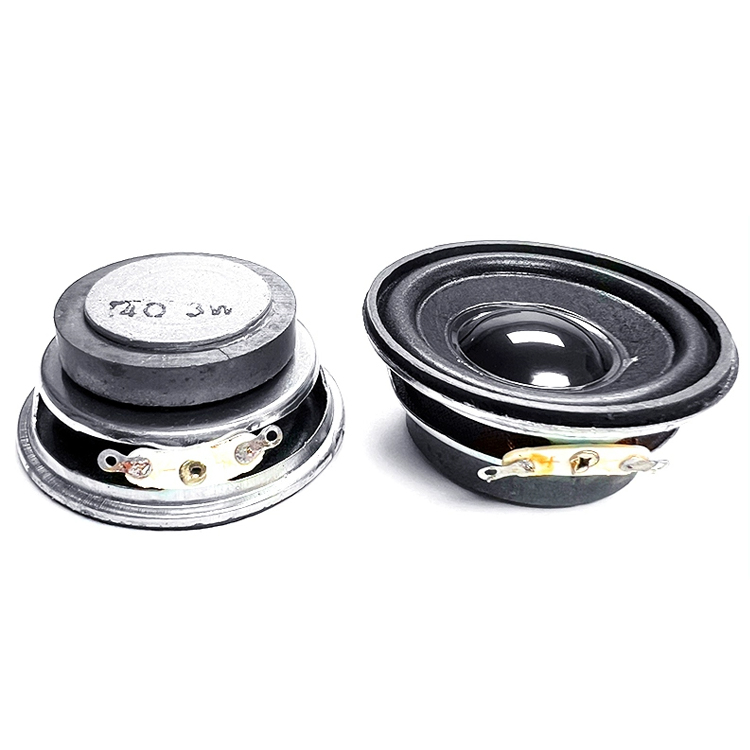

Multimedia Speaker YN50-45PU-B3L | 50*24.5mm | 5W | / | 82±3dB | 6W | -30+60℃ | 15g | / | / | 4±20%Ω |
 |

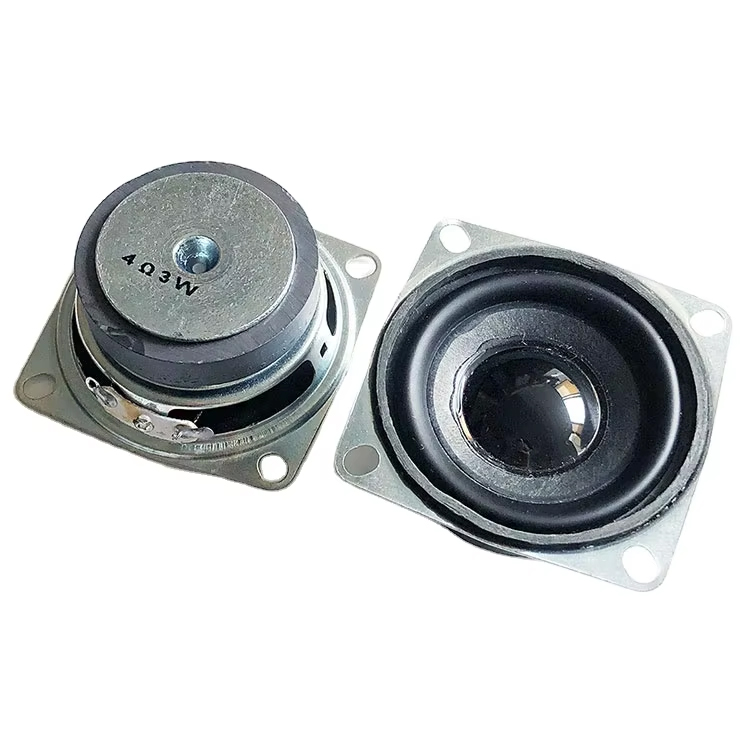

Magnetic Speaker YN5325-0403 | 53*25mm | 3W | / | 101±3dB | 5W | -30～+70℃ | 20g | / | / | 4±15%Ω |
 |

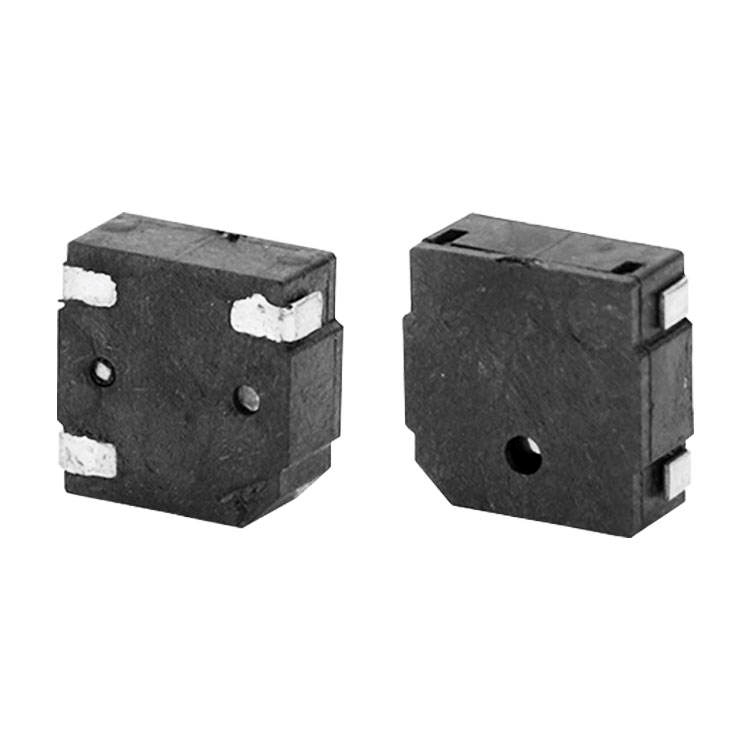

Magnetic Passive SMD Buzzer YN-DCW5020-12-4003S-Offset Hole | 5*5*2mm | 3V | ≤100mA | ≥75dB | 2.5~4.5V | -20~+70℃ | 0.1g | / | / | 12±3Ω |
