| Model | Product Name |
Product size（mm) |
Rated Voltage(V) |
Current Consumption(mA) |
SPL(dB) | Operating Voltage(V) |
Operating Temperature(℃) |
Weight(g) | Carton Size(cm) |
Quantity(pcs) | Gross Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Magnetic Passive SMD Buzzer YN-DCW8540-16-2703SB | 8.5*8.5*4 | 3V | ≤90mA | ≥86dB | 2-5V | -20~+70℃ | 1.1g | / | / | 16±3Ω |
 |
Magnetic Passive SMD Buzzer YN-DCW9025-16-2703 | 9*2.5mm | 3V | ≤90mA | ≥85dB | 2-4V | -20~+70℃ | 0.5g | / | / | 16±3Ω |
 |
Magnetic Passive SMD Buzzer YN-DCW9032-16-2703SB | 9*3.2mm | 3V | ≤100mA | ≥85dB | 2-4V | -20~+70℃ | 0.5g | / | / | 16±3Ω |
 |
Magnetic Passive SMD Buzzer YN-DCW9040-16-2703SB | 9*4mm | 3V | ≤100mA | ≥85dB | 2-5V | -20~+70℃ | 2g | / | / | 16±3Ω |
 |

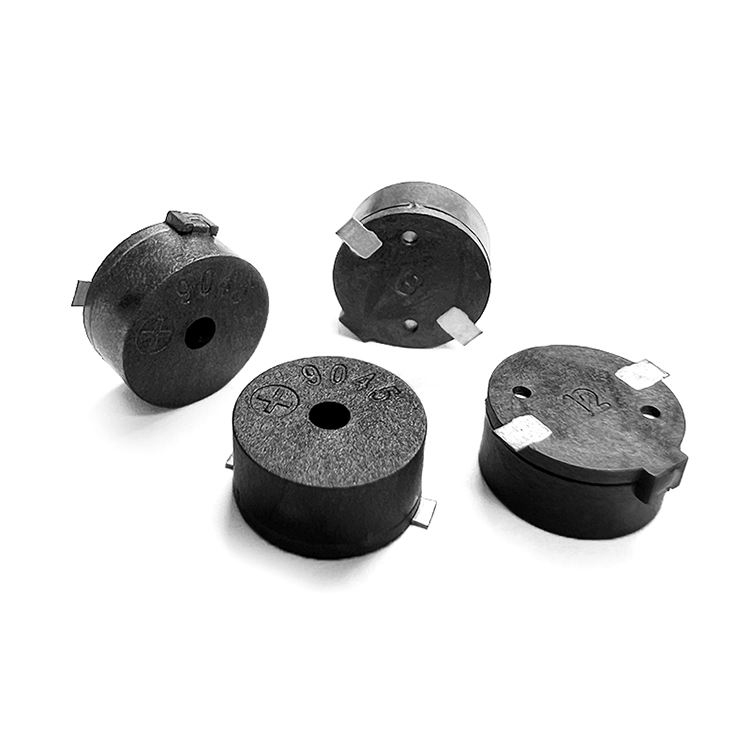

Magnetic Passive SMD Buzzer YN-DCW9045-16-2703S | 9*4.5mm | 3V | ≤90mA | ≥90dB | 2-4V | -20℃~+70℃ | 1g | / | / | 16±3Ω |
 |
Magnetic Active Buzzer YN-DCY9650-2705P-5 | 9.6*9.6*5mm | 3/5/12V | ≤40mA | ≥85dB | 2~4/4~6/9~13V | -20~+60℃ | 1g | / | / | / |
 |

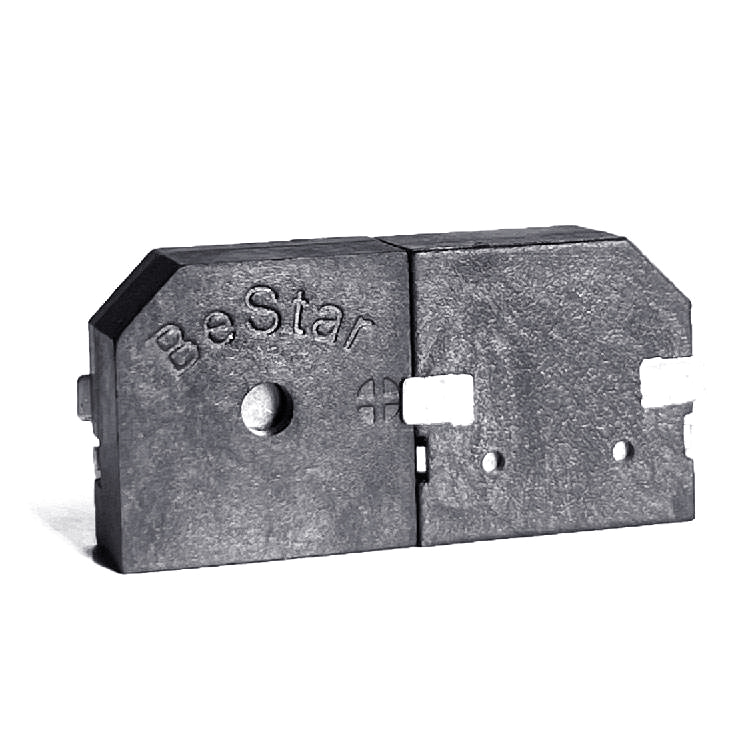

Magnetic Passive SMD Buzzer YN-DCW1307-45-2405 | 12.8*12.8*7mm | 5V | ≤40mA | ≥88dB | 3-7V | -20~+85℃ | 2g | / | / | / |
 |

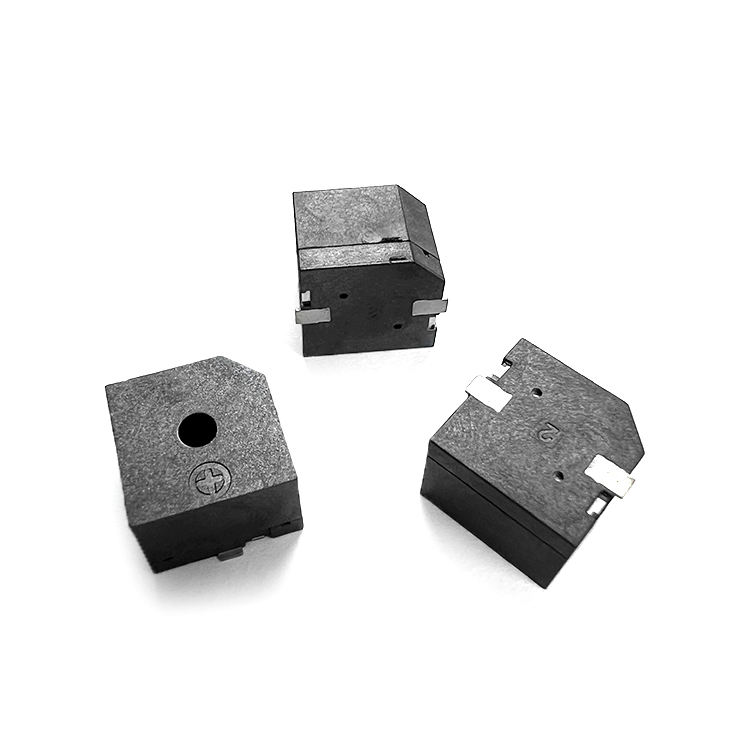

Magnetic Passive SMD Buzzer YN-DCW1310-2412 140Ω | 12.8*12.8*10mm | 12V | ≤40mA | ≥88dB | 8~15V | -20~+85℃ | 2g | / | / | 140±5Ω |
 |
Magnetic Active Buzzer YN-DCY1310-2405S | 12.8*12.8*10mm | 5V | ≤30mA | ≥90dB | 4~7V | -30～+70℃ | 2g | / | / | / |
 |
Magnetic Passive Buzzer YN-DCW6636-27P-3.2 | 6.6*3.6mm | 1.5/3V | ≤100mA | ≥75dB | 1~2/2~4V | -20~+60℃ | 0.4g | / | / | 6.5±2Ω;16±4Ω |
 |
Magnetic Passive Buzzer YN-DCW9040-42-2705P-4 | 10.8*9*4mm | 5V | ≤80mA | ≥85dB | 4~6V | -20~+45℃ | 0.6g | / | / | 42Ω |
 |
Magnetic Active Buzzer YN-DCY9042-P-5 | 9*4.2mm | 3/5/12V | ≤30mA | ≥85dB | 2~4/4~6/9~13V | -20~+60℃ | 1g | / | / | / |
