| Model | Product Name |
Product size（mm) |
Rated Voltage(V) |
Current Consumption(mA) |
SPL(dB) | Operating Voltage(V) |
Operating Temperature(℃) |
Weight(g) | Carton Size(cm) |
Quantity(pcs) | Gross Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

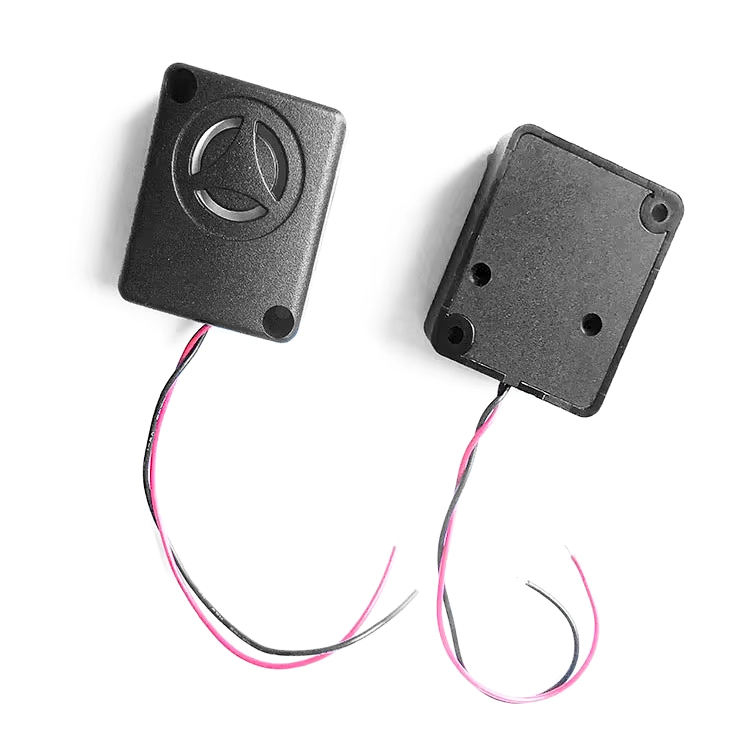

Piezo Active Buzzer YN-YDY4739-2912W | 47*39*23.5MM | 12V | ≤130mA | ≥105dB | 9~15V | -10~+60℃ | 27.5g | / | / | / |
 |

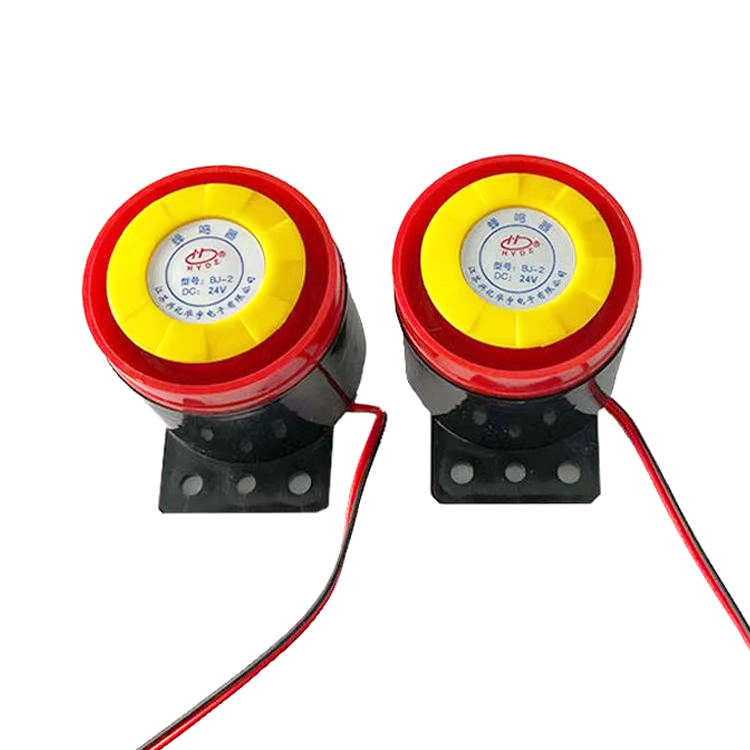

Piezo Active Buzzer YN-YDY5455-2512W | 54*55MM | 12/24/220V | ≤120mA | ≥120dB | 3-24，220-250V | -10℃~+60℃ | 20g | / | / | / |
 |

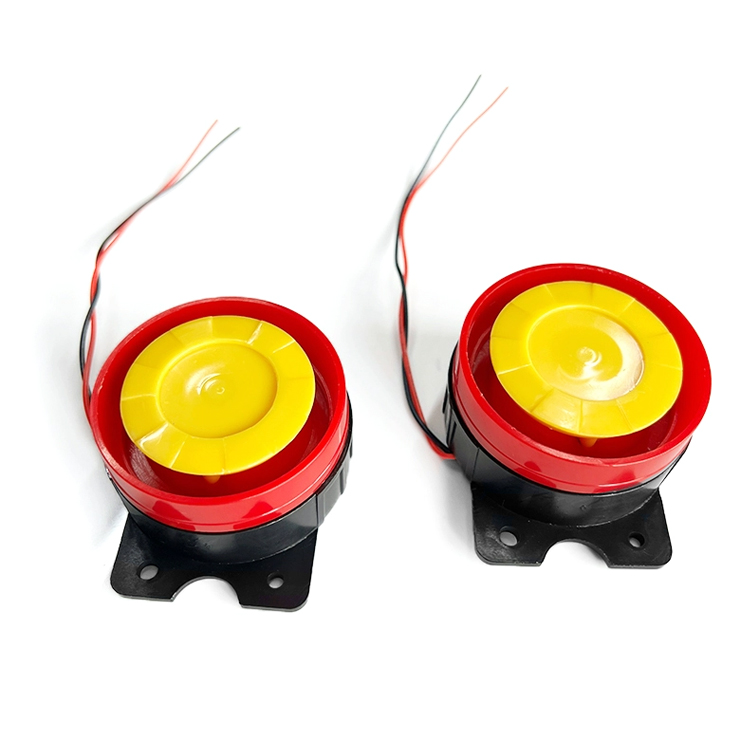

Piezo Active Buzzer YN-YDY5530-3512W150 | 54.6*31mm | 12/24V | ≤60mA | ≥100dB | 6~24V | -20~+70℃ | 36g | / | / | / |
 |
Magnetic Passive SMD Buzzer YN-DCW4020-16-4003S | 4*4*2mm | 3V | ≤100mA | ≥75dB | 2-4V | -20~+70℃ | 0.3g | / | / | 16±3Ω |
 |
Magnetic Passive SMD Buzzer YN-DCW5018-12-4003S | 5.2*5.2*1.8mm | 3V | ≤110mA | ≥75dB | 2-4V | -20~+70℃ | 1g | / | / | 12±3Ω |
 |
Magnetic Passive SMD Buzzer YN-DCW5020-12-4003S-Central Hole | 5*5*2mm | 3V | ≤100mA | ≥75dB | 2.5-4.5V | -20~+70℃ | 0.1g | / | / | 12±3Ω |
 |
Magnetic Passive SMD Buzzer YN-DCW5030-12-4003S | 5*5*3 | 3V | ≤100mA | ≥78dB | 2.5-4.5V | -20~+70℃ | 0.1g | / | / | 12±3Ω |
 |
Magnetic Passive SMD Buzzer YN-DCW5525-10-3103S | 5.5*5.5*2.5mm | 3V | ≤120mA | ≥80dB | 2-4V | -20~+70℃ | 1g | / | / | 10±2Ω |
 |
Magnetic Passive SMD Buzzer YN-DCW6540-12-2703S | 6.5*6.5*4 | 3V | ≤120mA | ≥80dB | 2-5V | -20~+70℃ | 0.3g | / | / | 12±2Ω |
 |
Magnetic Passive SMD Buzzer YN-DCW7525-16-2703SB | 7.5*7.5*2.5mm | 3V | ≤100mA | ≥83dB | 2-5V | -20~+70℃ | 0.8g | / | / | 16±3Ω |
 |
Magnetic Passive SMD Buzzer YN-DCW8530-2703SB | 8.5*8.5*3mm | 3V | ≤80mA | ≥85dB | 2-5V | -20~+70℃ | 1g | / | / | 16±3Ω |
 |
Magnetic Passive SMD Buzzer YN-DCW8530-16-2703S | 8.5*8.5*3mm | 3V | ≤80mA | ≥90dB | 2-5V | -20~+70℃ | 1g | / | / | 16±3Ω |
