| Model | Product Name |
Product size（mm) |
Rated Voltage(V) |
Current Consumption(mA) |
SPL(dB) | Operating Voltage(V) |
Operating Temperature(℃) |
Weight(g) | Carton Size(cm) |
Quantity(pcs) | Gross Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Piezo Passive Buzzer YN-YDW2211-2005P3 | 21.5*11mm | 5V | ≤3mA | ≥80dB | 2.5~25V | -20~+70℃ | 5g | / | / | / |
 |
Piezo Passive Buzzer YN-YDW2722-2712P-5 | 27*22*H7mm | 3/5/12V | ≤5mA | ≥90dB | 1-30V | -10~+60℃ | 2.8g | / | / | / |
 |
Piezo Passive Buzzer YN-YDW3010-3312P3 | 29.6*9.6mm | 12V | ≤3mA | ≥90dB | 3~20V | -10~+60℃ | 3.6g | / | / | / |
 |
Piezo Passive Buzzer YN-YDW5215-3018P | 51.5*15.2mm | 18V | ≤200mA | ≥90dB | 60V | -20～+95℃ | 14g | / | / | / |
 |
Piezo Passive Buzzer YN-YDW10025-4012W | 10*2.5mm | 3/5/12V | ≤5mA | ≥70dB | 1-25V | -20~+70℃ | 0.3g | / | / | / |
 |
Piezo Passive Buzzer YN-YDW13025-4012W30 | 13*2.5mm | 3/5/12V | ≤5mA | ≥70dB | 2~25V | -10~+60℃ | 0.5g | / | / | / |
 |

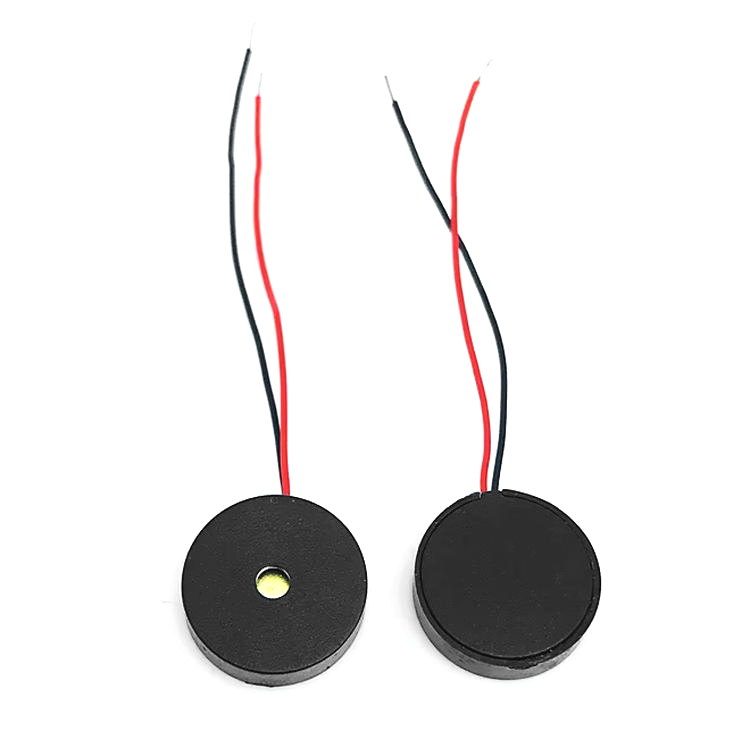

Piezo Passive Buzzer YN-YDW1404-4012W | 14*4mm | 3/5/12V | ≤5mA | ≥75dB | 2~30V | -10~+60℃ | 1g | / | / | / |
 |

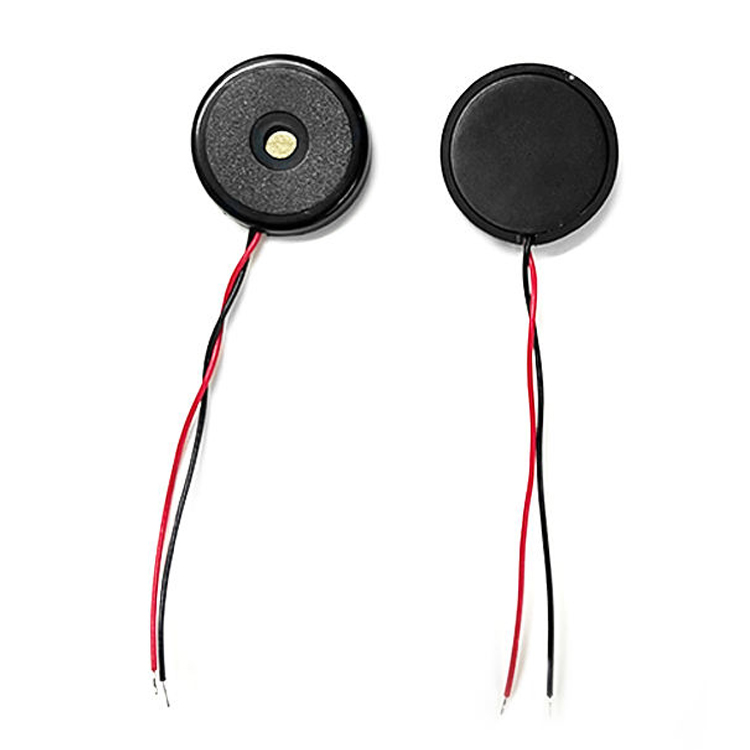

Piezo Passive Buzzer YN-YDW22045-4012W-100 | 22*4.5mm | 3/5/12V | ≤5mA | ≥85dB | 1~30V | -10~+60℃ | 2g | / | / | / |
 |

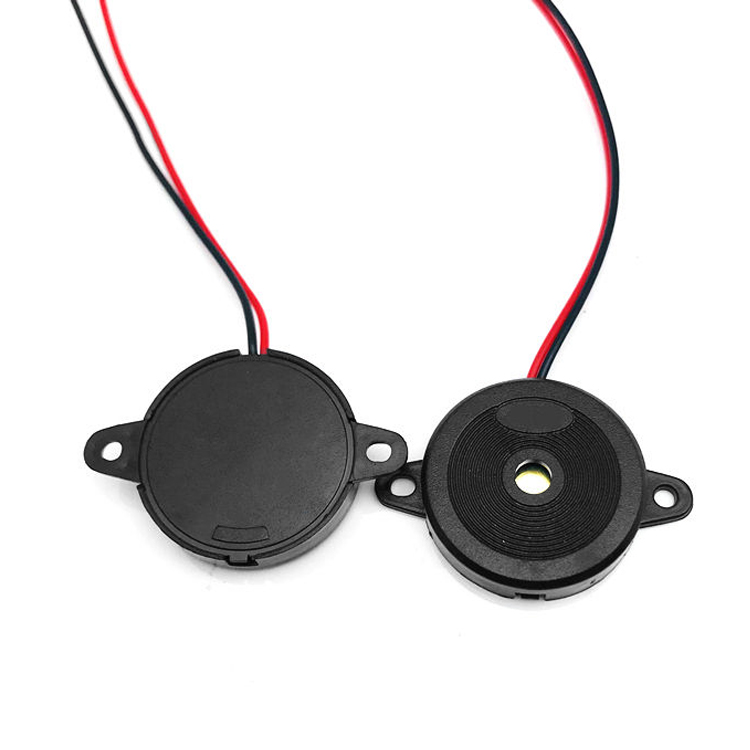

Piezo Passive Buzzer YN-YDW24055-4005W100 | 24*4.5mm | 3/5/12V | ≤5mA | ≥85dB | 1-30V | -10~+60℃ | 2.4g | / | / | / |
 |
Piezo Active Buzzer YN-YDY4739-2812W100 | 47.3*39.3*23.5mm | 12V | ≤100mA | ≥115dB | 6~15V | -10~+60℃ | 53g | / | / | / |
 |
Piezo Active Buzzer YN-YDY14075-4012P-7.6 | 14*7.5mm | 12V | ≤12mA | ≥85dB | 3-24V | -10~+60℃ | 1.1g | / | / | / |
 |
Piezo Active Buzzer YN-YDY2310-3512P-15 | 23*10mm | 3/5/12/24V | ≤10mA | ≥85dB | 3-24V | -10~+60℃ | 3.3g | / | / | / |
