| Model | Product Name |
Product size（mm) |
Rated Voltage(V) |
Current Consumption(mA) |
SPL(dB) | Operating Voltage(V) |
Operating Temperature(℃) |
Weight(g) | Carton Size(cm) |
Quantity(pcs) | Gross Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Magnetic Active SMD Buzzer YN-DCY9650-27SB | 9.6*9.6*5mm | 3/5V | ≤30mA | ≥80dB | 2~5/4~7V | -20~+70℃ | 1.1g | / | / | / |
 |
Magnetic Active Buzzer YN-DCY12095-24P-7.6 | 12*9.5mm | 3/5/12V | ≤30mA | ≥85dB | 2~4/4~7/10~14V | -20~+60℃ | 2g | / | / | / |
 |

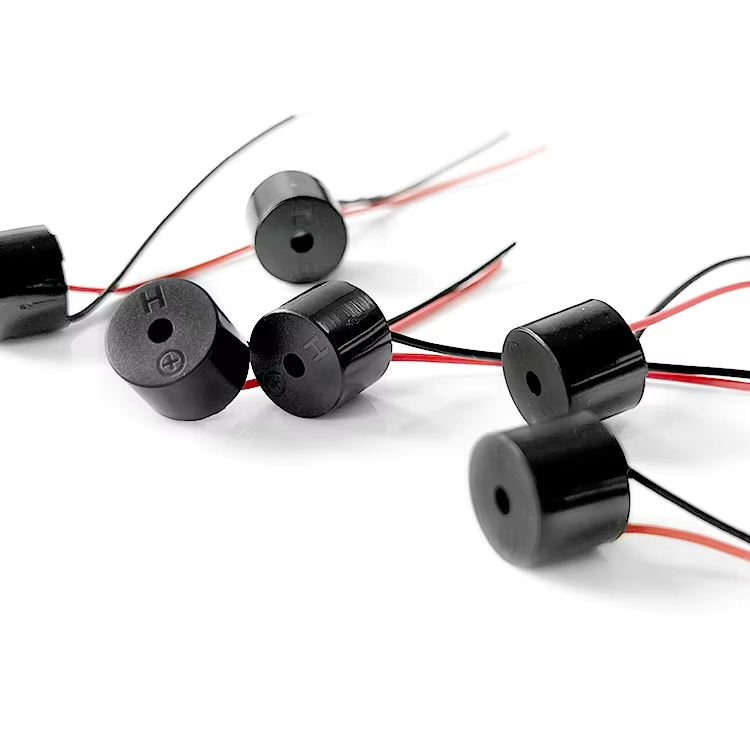

Magnetic Active Buzzer YN-DCY12095-2412W50 | 12*9.5mm | 12V | ≤30mA | ≥85dB | 10~13V | -20~+60℃ | 2g | / | / | / |
 |

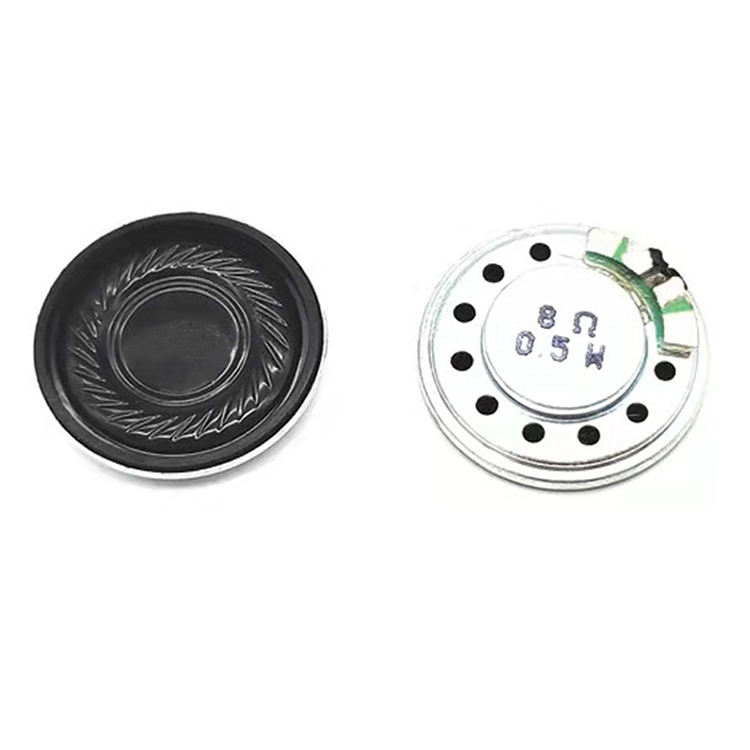

Mylar Speaker YN20DT-08005 | 20*3.2mm | 0.5W | / | 87±3dB | 0.8W | -30~+65℃ | 3g | / | / | 8±20%Ω |
 |
Piezo Passive Buzzer YN-YDW1707-4012PA10 | 17*6.8mm | 3/5/12V | ≤5mA | ≥70dB | 1~30V | -10~+60℃ | 1.6g | / | / | / |
 |
Ultrasonic Sensor YN1612A40khz-T | 16*12mm | / | / | ≥-68dB | 1~80V | -30~+70℃ | 2.3g | / | / | / |
 |
Piezo Ceramic Disc FT-12T-8.0A1-C12 | 12*0.2mm | / | ≤6mA | / | / | -20~+70℃ | 0.5g | / | / | Max300 |
 |
Piezo Ceramic Disc FT-20T-3.5A1-C25 | 20*0.2mm | / | ≤6mA | / | / | / | 0.5g | / | / | / |
 |
Piezo Ceramic Disc YN49mmPVC-L100 | 49*0.7mm | / | / | / | / | -20~+60℃ | 3g | / | / | ≤500Ω |
 |
Ultrasonic Sensor YN1612P40khz-T | 16.5*12mm | / | / | ≥-65dB | / | -30~+70℃ | 2.3g | / | / | / |
 |
Ultrasonic Sensor YN1007A40Khz-T | 9.8*7mm | / | / | ≥-67dB | / | -30~+70℃ | 2.3g | / | / | / |
 |
Ultrasonic Sensor YN1007P40Khz-T | 9.8*7mm | / | / | ≥-65dB | / | -30~+70℃ | 1g | / | / | / |
