| Model | Product Name |
Product size（mm) |
Rated Voltage(V) |
Current Consumption(mA) |
SPL(dB) | Operating Voltage(V) |
Operating Temperature(℃) |
Weight(g) | Carton Size(cm) |
Quantity(pcs) | Gross Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

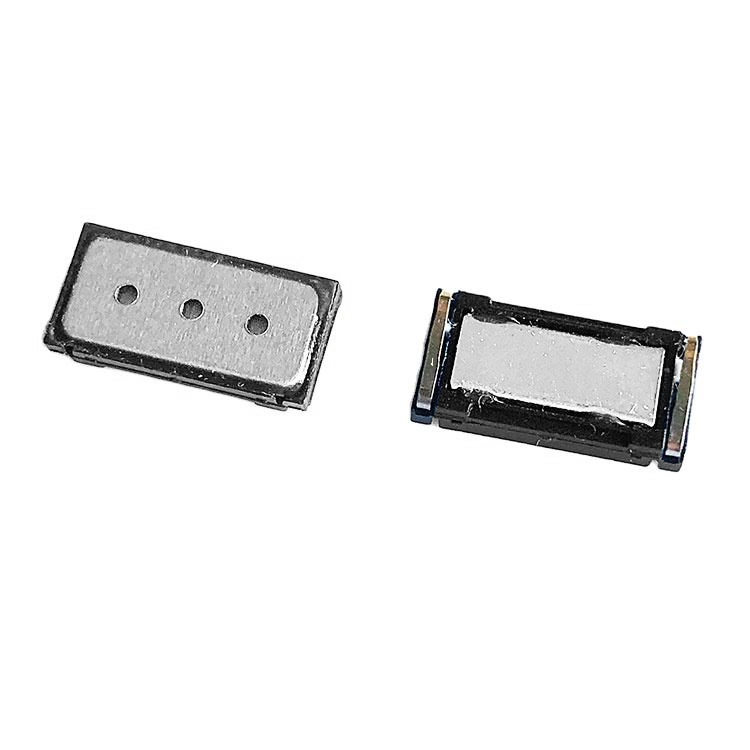

Earpiece YN1206-3220 | 12.6*2.1mm | 20mW | / | 110±3dB | 30mW | -30~+65℃ | 0.5g | / | / | 32±15%Ω |
 |

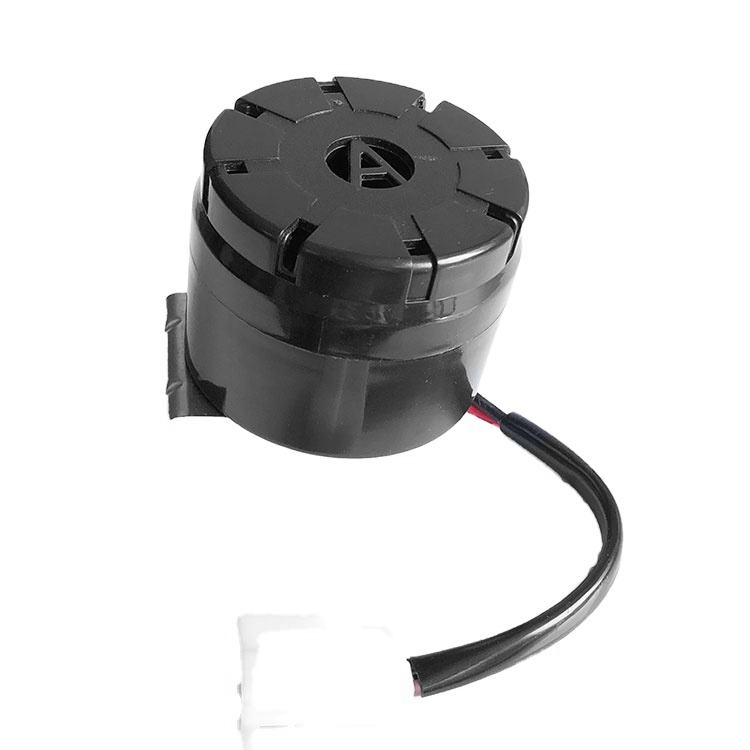

Piezo Active Buzzer YN-YDY6046-2812WD160 | 60*45.5mm | 12V | ≤300mA | ≥100dB | 6~15V | -10~+60℃ | 65g | / | / | / |
 |

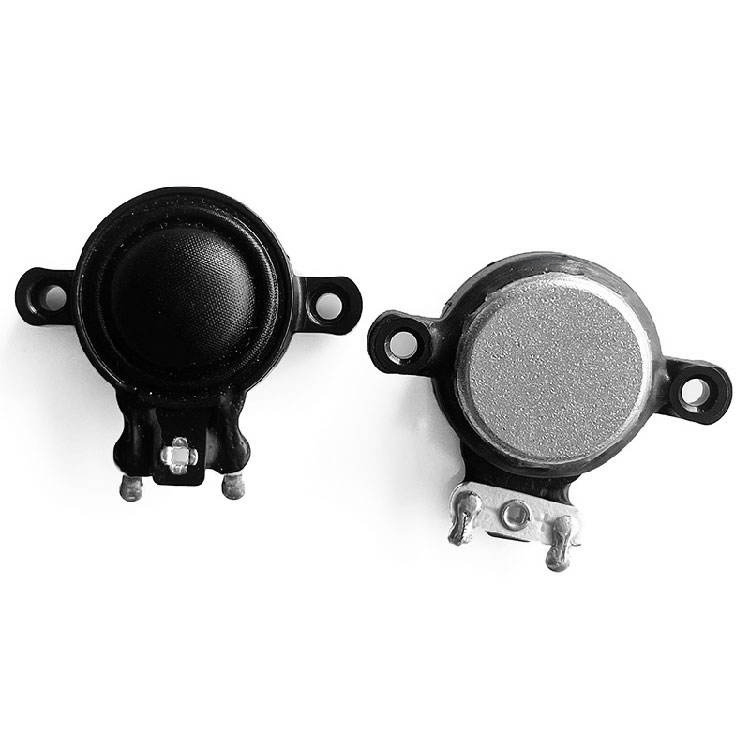

Dynamic Speaker YN26095-0410 | 25.6*9.3mm | 10W | / | 80±3dB | 10.5W | -30~+60℃ | 15g | / | / | 4±15%Ω |
 |

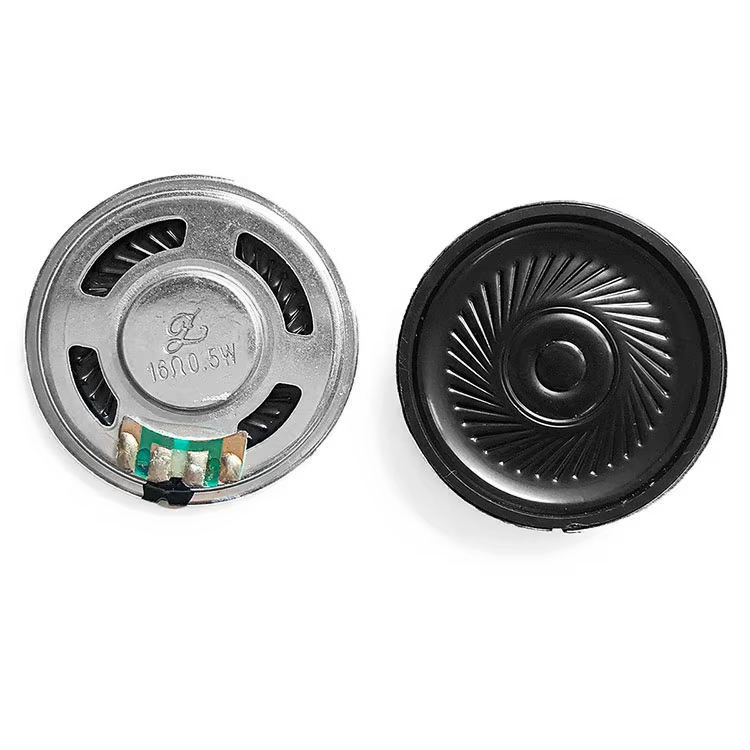

Dynamic Speaker YN40DT-16005 | 40*5.1mm | 0.5W | / | 93±3dB | 0.8W | -30~+65℃ | 11g | / | / | 8±20%Ω |
 |
Piezo Passive Buzzer YN-YDW5429-2606W | 54*29mm | 6/12/24V | ≤16mA | ≥95dB | 1~30V | -10~+60℃ | 7.8g | / | / | / |
 |
Electret Condenser Microphone YN-6027L | 6*2.7mm | 4.5V | ≤500μA | ≥-58dB | 1.5~10V | -30~+70℃ | 1g | / | / | / |
 |
Dynamic Speaker YN3412-0402WD | 34.8*11.8*3.8mm | 2W | / | 88±3dB | 2.5W | -30~+60℃ | 3g | / | / | 4±20%Ω |
 |

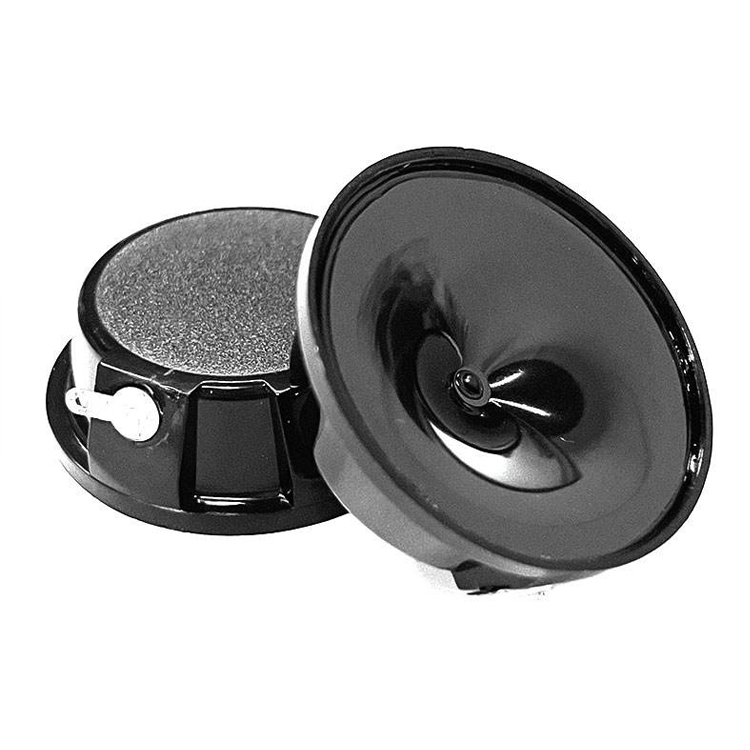

Ultrasonic Horn YN4140-2005 | 41*14.5mm | 5V | ≤10mA | ≥90dB | 1~30V | -20~+70℃ | 10g | / | / | / |
 |

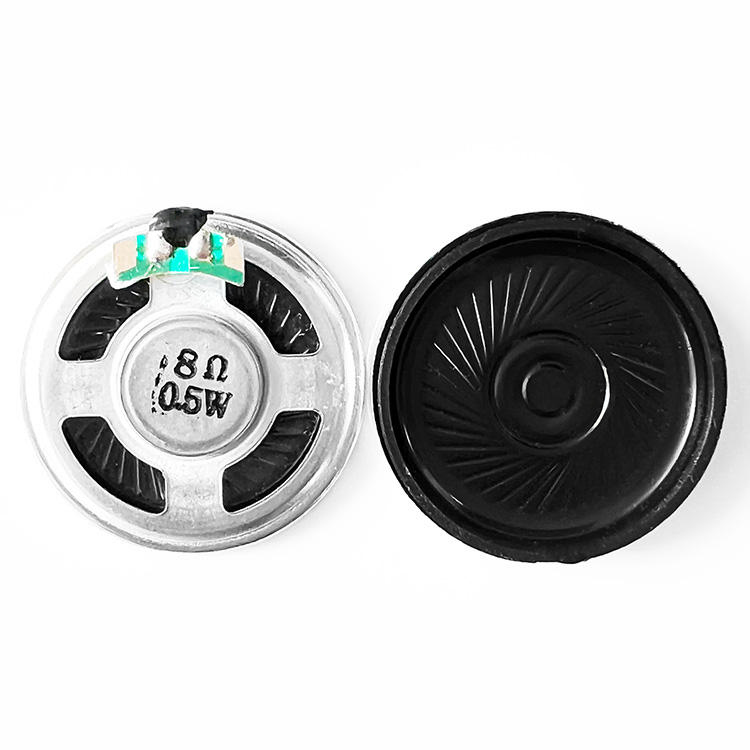

Dynamic Speaker YN40DT-08005 | 40*4.8mm | 0.5W | / | 92±3dB | 0.8W | -30~+60℃ | 10g | / | / | 8±15%Ω |
 |

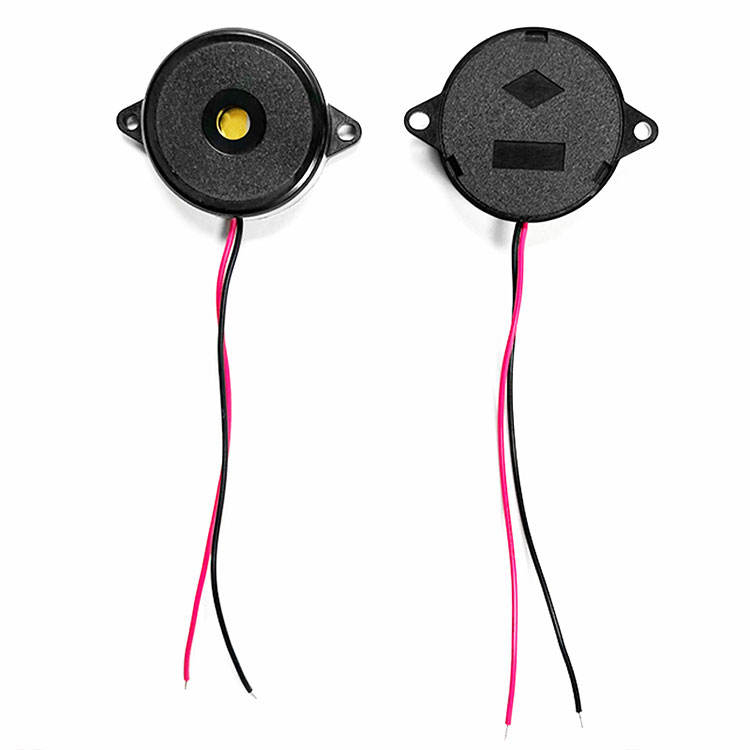

Piezo Passive Buzzer YN-YDW3509W | 34.3*9mm | 12V | ≤5mA | ≥85dB | 1~30V | -10~+60℃ | 5g | / | / | / |
 |
Dynamic Speaker YN1206-32002A | 12*6*2.5mm | 0.02W | / | 110±3dB | 0.03W | -30~+70℃ | 0.5g | / | / | 32±20%Ω |
 |
Piezo Passive SMD Buzzer YN-YDW2207-4012S | 22*7mm | 12V | ≤12mA | ≥95dB | 1~30V | -30~+85℃ | 2.3g | / | / | / |
