| Model | Product Name |
Product size（mm) |
Rated Voltage(V) |
Current Consumption(mA) |
SPL(dB) | Operating Voltage(V) |
Operating Temperature(℃) |
Weight(g) | Carton Size(cm) |
Quantity(pcs) | Gross Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dynamic Speaker YN21D-080025 | 21*6.8mm | 0.25W | / | 83±3dB | 0.5W | -30~+65℃ | 5.5g | / | / | 8±20%Ω |
 |
Dynamic Speaker YN27D-080025 | 26.5*8.7mm | 0.25W | / | 82±3dB | 0.5W | -30~+65℃ | 6.2g | / | / | 8±20%Ω |
 |
Dynamic Speaker YN29D-080025 | 28.8*9mm | 0.25W | / | 82±3dB | 0.5W | -30~+65℃ | 6.2g | / | / | 8±20%Ω |
 |

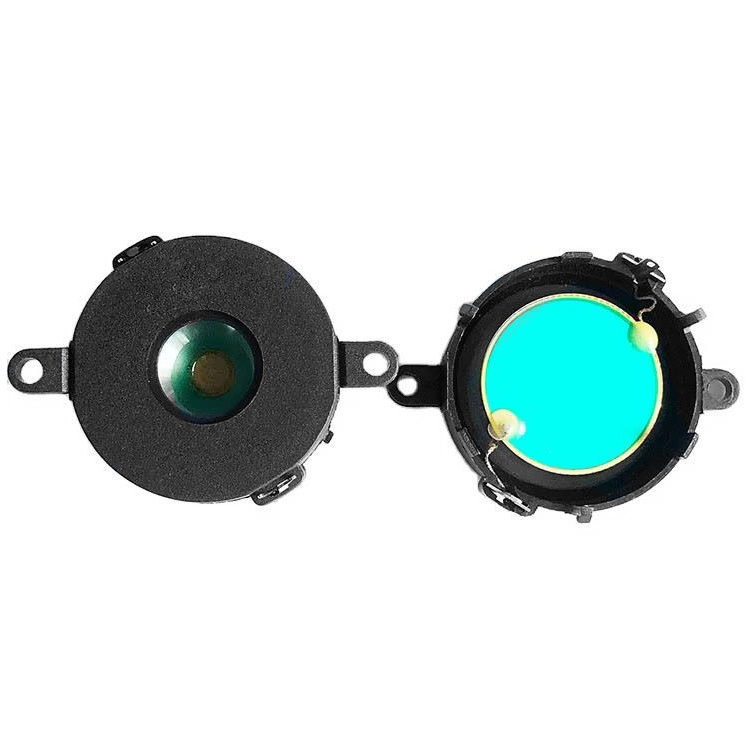

Piezo Passive Buzzer YN-YDW4524-2512P-47 | 45*24mm | 12V | ≤100mA | ≥95dB | 3~50V | -10~+60℃ | 11.5g | / | / | / |
 |
Dynamic Speaker YN1511-08005WD | 15*11*3.2mm | 0.5W | / | 95±3dB | 0.7W | -30~+65℃ | 1.4g | / | / | 8±20%Ω |
 |
Dynamic Speaker YN18D-08007W-25 | 18*3.3mm | 0.7W | / | 90±3dB | 1W | -30~+60℃ | 2.8g | / | / | 8±20%Ω |
 |
Ultrasonic Horn YN5120-20283P | 50.5*18.2mm | 2.83V | / | 105±3dB | 1~10V | -20~+70℃ | 8g | / | / | / |
 |
Dynamic Speaker YN1511-08005 | 15*11*3.2mm | 0.5W | / | 95±3dB | 0.7W | -30~+65℃ | 1.4g | / | / | 8±20%Ω |
 |
Magnetic Active Buzzer YN-DCY12095-2303WD60 | 12*9.5mm | 3V | ≤30mA | ≥80dB | 2~5V | -20~+45℃ | 2g | / | / | / |
 |
Dynamic Speaker YN1813-08008W-15 | 18*13*4.4mm | 0.8W | / | 82±3dB | 1W | -20~+50℃ | 1g | / | / | 8±15%Ω |
 |
Piezo Active Buzzer YN-YDY3941-2012W | 39*41mm | 12/24/220V | ≤130mA | ≥95dB | 3~24/220V | -10~+60℃ | 10g | / | / | / |
 |
Dynamic Speaker YN1609-08007 | 16*9*3mm | 0.7W | / | 80±3dB | 1W | -30~+65℃ | 1.3g | / | / | 8±20%Ω |
