| Model | Product Name |
Product size（mm) |
Rated Voltage(V) |
Current Consumption(mA) |
SPL(dB) | Operating Voltage(V) |
Operating Temperature(℃) |
Weight(g) | Carton Size(cm) |
Quantity(pcs) | Gross Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

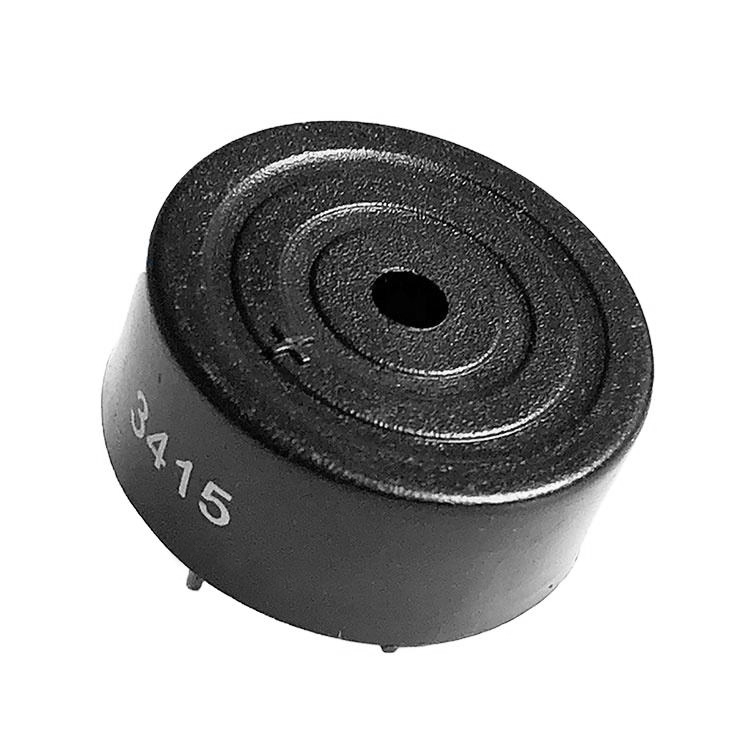

Piezo Active Buzzer YN-YDY2310-3212 | 23.3*10.2g | 12V | ≤10mA | ≥85dB | 3~24V | -30～+85℃ | 5g | / | / | / |
 |

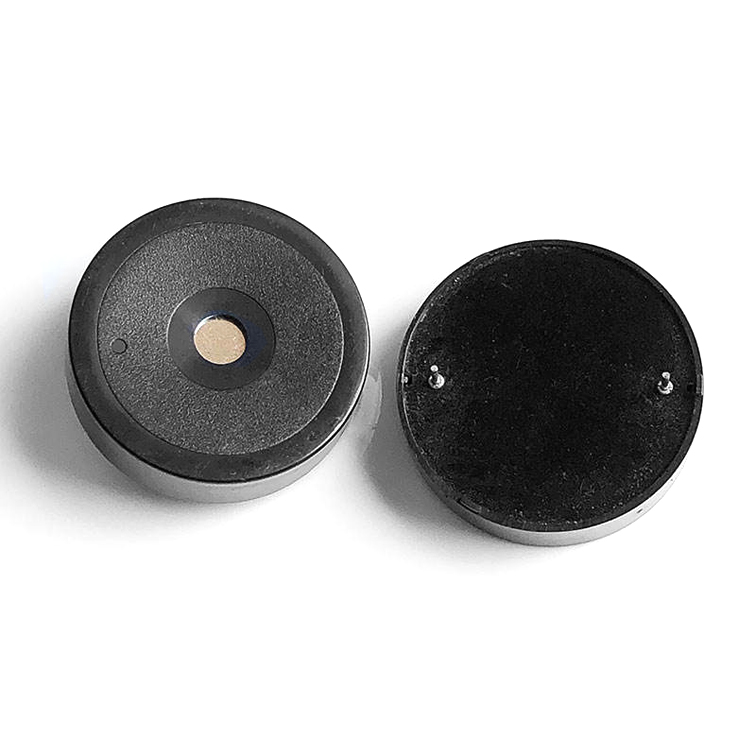

Piezo Passive Buzzer YN-YDW3509-1105P-25.4 | 34.5*9.3mm | 5V | ≤5mA | ≥85dB | 1~30V | -20~+90℃ | 5g | / | / | / |
 |

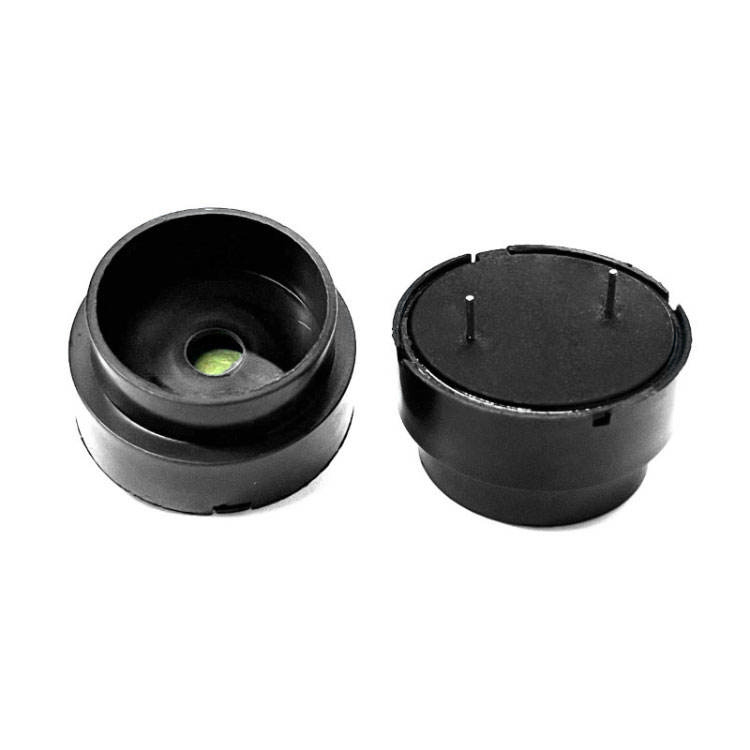

Piezo Passive Buzzer YN-YDW3017-3512P-15 | 30*17mm | 5V | ≤10mA | ≥90dB | 3~15V | -10~+60℃ | 6.5g | / | / | / |
 |

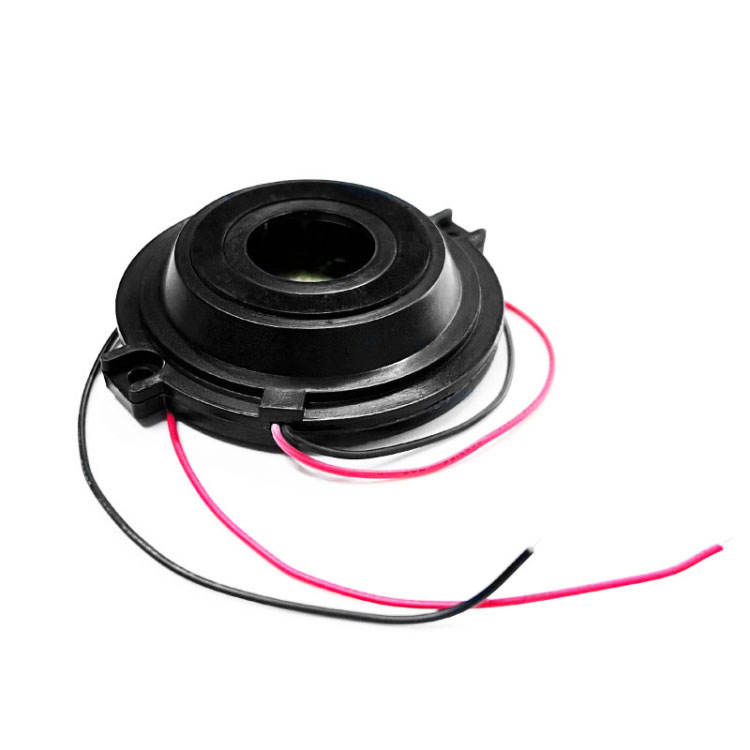

Piezo Passive Buzzer YN-YDW6315-3305W | 62.5*15mm | 5V | ≤2mA | ≥90dB | 3~16V | -20~+70℃ | 15g | / | / | / |
 |

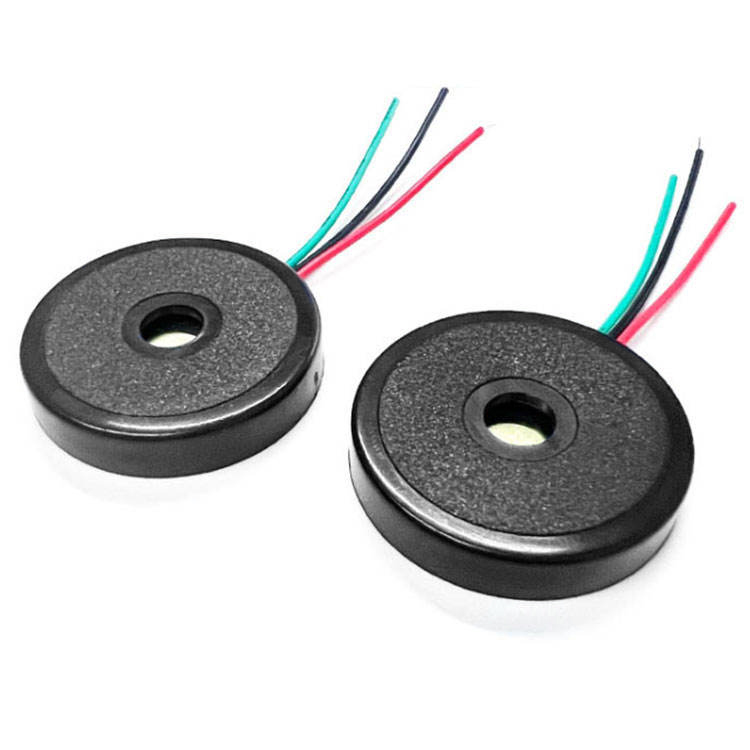

Piezo Passive Buzzer YN-YDW3056-3312W | 30*5.6mm | 12V | ≤2mA | ≥90dB | 3~24V | -20~+70℃ | 5g | / | / | / |
 |
Piezo Passive Buzzer YN-YDW2311-3712P3 | 23.5*11.4mm | 12V | ≤25mA | ≥100dB | 6~13V | -10~+60℃ | 6g | / | / | / |
 |
Piezo Active Buzzer YN-YDY3038-3312W | 30*12.5mm | 12V | ≤20mA | ≥90dB | 5~15V | -20~+70℃ | 5g | / | / | / |
 |
Piezo Passive Buzzer YN-YDW12055-4012PA-6.5 | 12*5.5mm | 3/5/12V | ≤5mA | ≥83dB | 1~25V | -10~+60℃ | 0.8g | / | / | / |
 |
Magnetic Active Buzzer YN-DCY9055-2703W-40 | 9*5.5mm | 3/5/12V | ≤30mA | ≥85dB | 2~4/4~6/9~13V | -20~+60℃ | 1.5g | / | / | / |
 |
Magnetic Active Buzzer YN-DCY9042-2703W-40 | 9*4.2mm | 3V | ≤30mA | ≥80dB | 2~4V | -20~+60℃ | 1.2g | / | / | / |
 |
Magnetic Active Buzzer YN-DCY12065ST-2403P-7.6 | 12*6.5mm | 3/5/12V | ≤30mA | ≥85dB | 2~4/4~6/9~13V | -20~+60℃ | 1.6g | / | / | / |
 |
Magnetic Active Buzzer YN-DCY12095ST-2305P-7.6 | 12*9.5mm | 3/5/12V | ≤30mA | ≥85dB | 2~4/4~6/9~13V | -20~+60℃ | 2g | / | / | / |
