| Model | Product Name |
Product size（mm) |
Rated Voltage(V) |
Current Consumption(mA) |
SPL(dB) | Operating Voltage(V) |
Operating Temperature(℃) |
Weight(g) | Carton Size(cm) |
Quantity(pcs) | Gross Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Dynamic Speaker YN2726-08012WD-65 | 27.2*26mm | 1.2W | / | 97±3dB | 1.5W | -30~+70℃ | 9.5g | / | / | 8±15%Ω |
 |
Piezo Passive Buzzer YN-YDW3040-4005W-140 | 30*6mm | 5V | ≤2mA | ≥80dB | 1~30V | -20~+60℃ | 5g | / | / | / |
 |
Piezo Active Buzzer YN-YDY2319-3712W | 23.3*19mm | 12V | ≤12mA | ≥90dB | 3~24V | -10~+60℃ | 5g | / | / | / |
 |
Dynamic Speaker YN36D5.4H-320002 | 36*5.4mm | 20mW | / | 120±3dB | 30mW | -20~+55℃ | 8.4g | / | / | 32±15%Ω |
 |
Piezo Passive Buzzer YN-YDW1704-4005W | 16.8*4mm | 3/5/12V | ≤3mA | ≥85dB | 2~30V | -10～+60℃ | 0.9g | / | / | / |
 |
Dynamic Speaker YN1511-08005W-60 | 15*11*3.2mm | 0.5W | / | 95±3dB | 0.7W | -30～+65℃ | 1.4g | / | / | 8±20%Ω |
 |
Dynamic Speaker YN8D-08005W15 | 8*2.8mm | 0.5W | / | 80±3dB | 0.8W | -30～+60℃ | 1.3g | / | / | 8±20%Ω |
 |

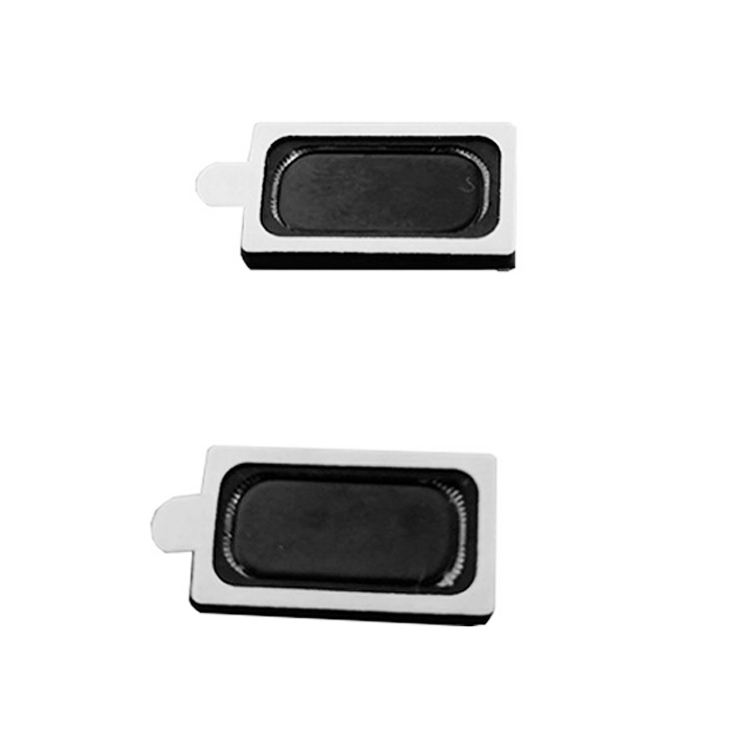

Dynamic Speaker YN1609-08007T | 16*9*3.5mm | 0.7W | / | 80±3dB | 1W | -30～+65℃ | 1.3g | / | / | 8±20%Ω |
 |

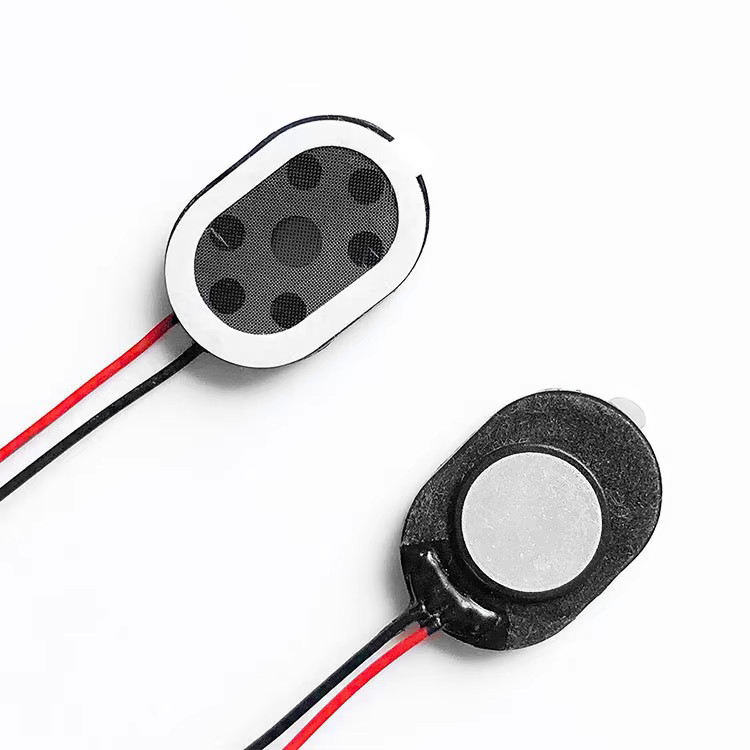

Dynamic Speaker YN2014-0801W-60 | 20*14*3.6mm | 1W | / | 93±3dB | 1.2W | -20~+50℃ | 2g | / | / | 8±20%Ω |
 |

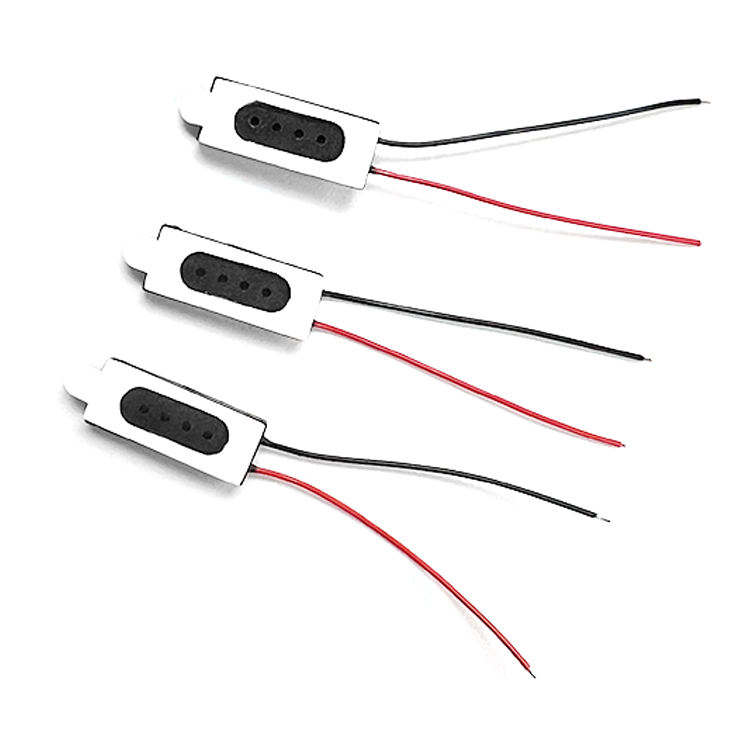

Dynamic Speaker YN1506-08005 | 15*6*2.6mm | 0.5W | / | 81±3dB | 0.7W | -30～+65℃ | 0.5g | / | / | 8±20%Ω |
 |

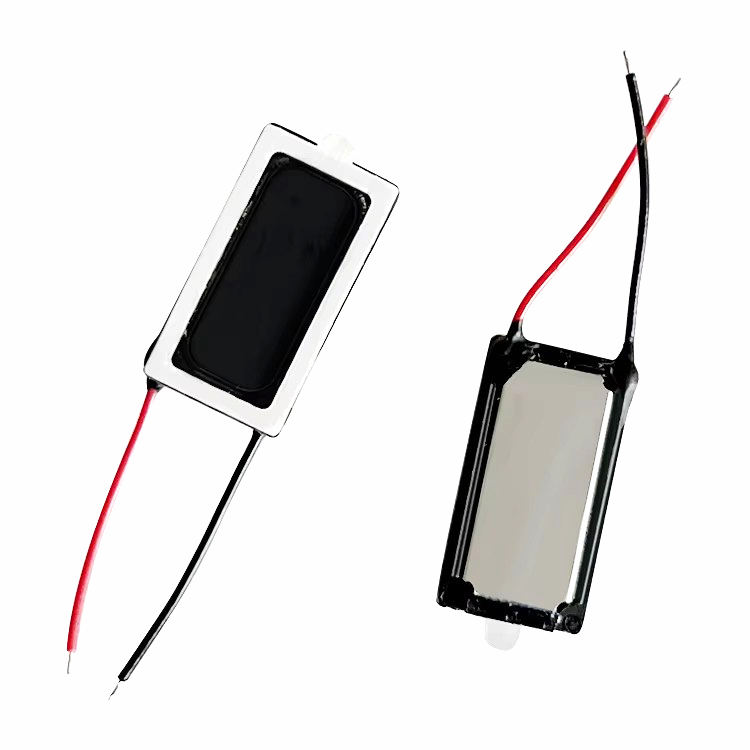

Dynamic Speaker YN1609-08005W20 | 16*9*3.5mm | 0.5W | / | 88±3dB | 0.7W | -30～+65℃ | 3g | / | / | 8±20%Ω |
 |

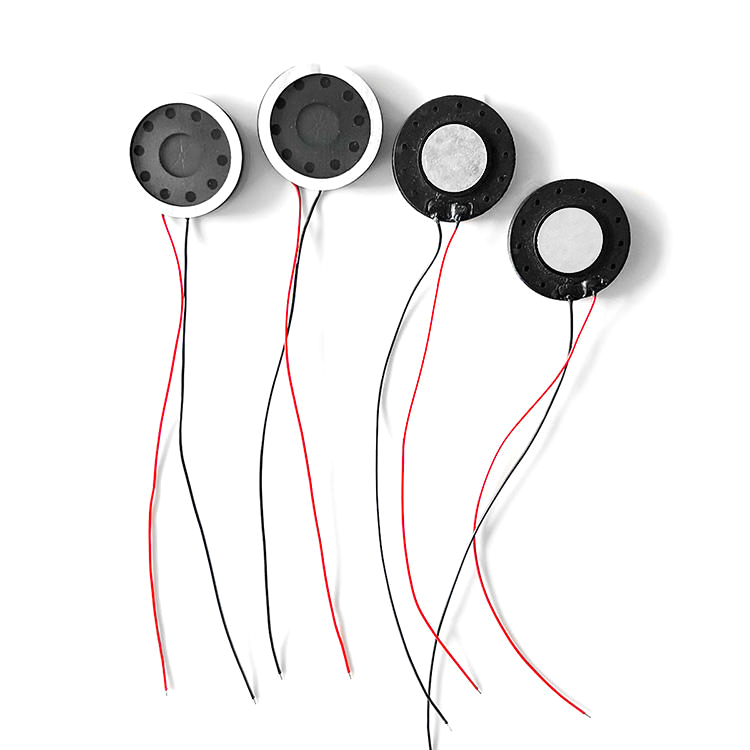

Dynamic Speaker YN23D-08008-W160 | 23*4.8mm | 0.8W | / | 95±3dB | 1W | -30～+65℃ | 3.8g | / | / | 8±20%Ω |
