| Model | Product Name |
Product size（mm) |
Rated Voltage(V) |
Current Consumption(mA) |
SPL(dB) | Operating Voltage(V) |
Operating Temperature(℃) |
Weight(g) | Carton Size(cm) |
Quantity(pcs) | Gross Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

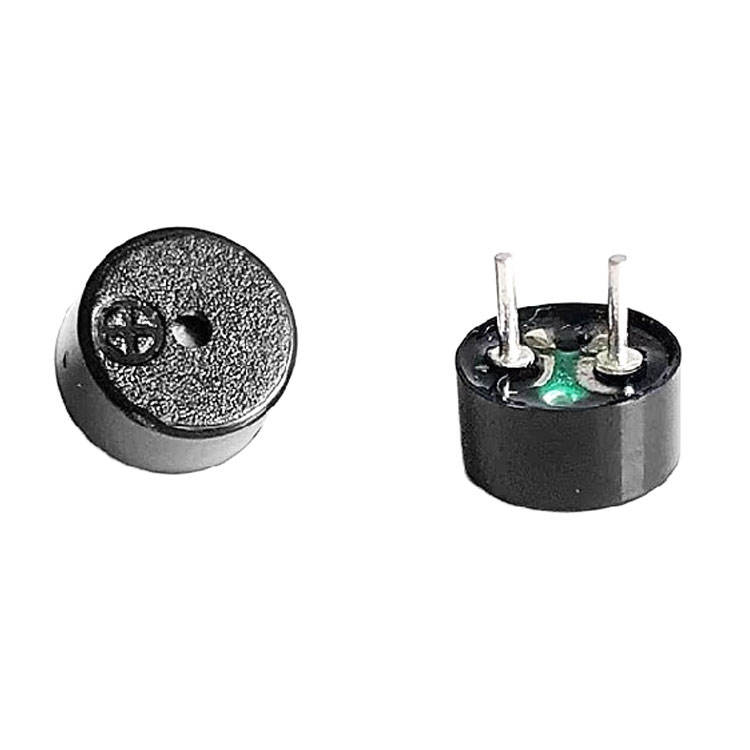

Magnetic Passive Buzzer YN-DCW6636-27P-3.2 | 6.6*3.6mm | 1.5/3V | ≤100mA | ≥75dB | 1~2/2~4V | -20~+60℃ | 0.4g | / | / | 6.5±2Ω;16±4Ω |
 |

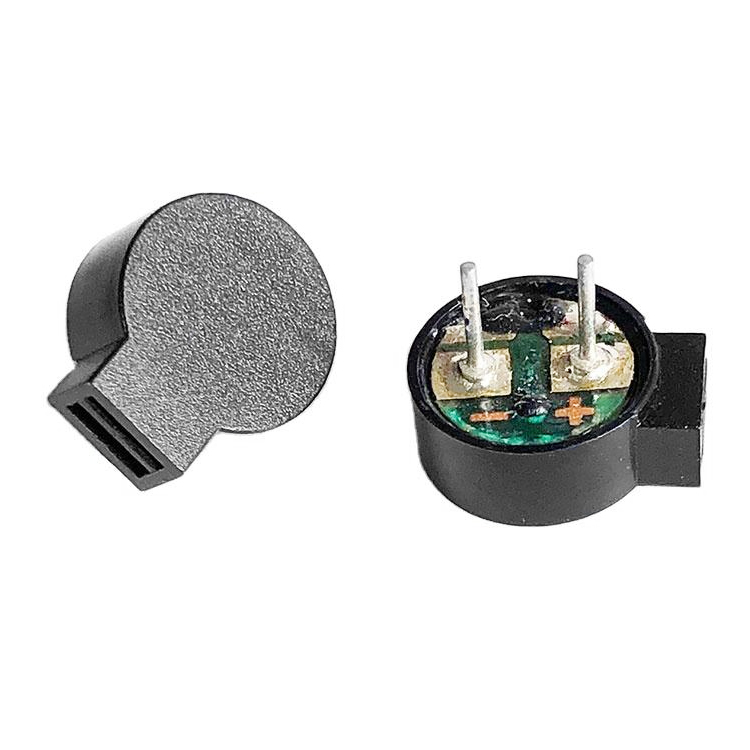

Magnetic Passive Buzzer YN-DCW9040-42-2705P-4 | 10.8*9*4mm | 5V | ≤80mA | ≥85dB | 4~6V | -20~+45℃ | 0.6g | / | / | 42Ω |
 |

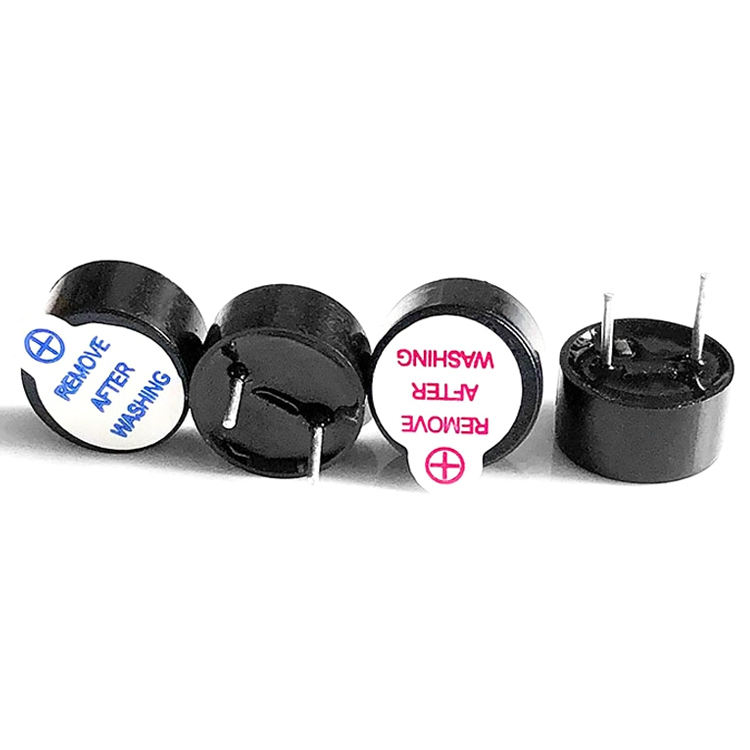

Magnetic Active Buzzer YN-DCY9042-P-5 | 9*4.2mm | 3/5/12V | ≤30mA | ≥85dB | 2~4/4~6/9~13V | -20~+60℃ | 1g | / | / | / |
 |

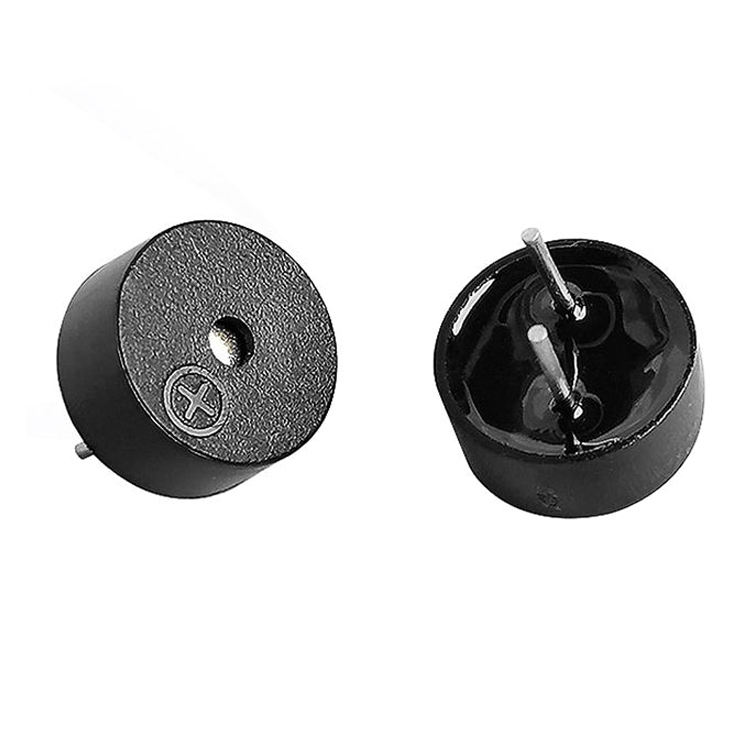

Magnetic Passive Buzzer YN-DCW9055-2703P4 | 9*5.5mm | 3/5V | ≤80mA | ≥80dB | 2-4/4-6V | -20~+60℃ | 0.6g | / | / | 16±4Ω/42±6Ω |
 |

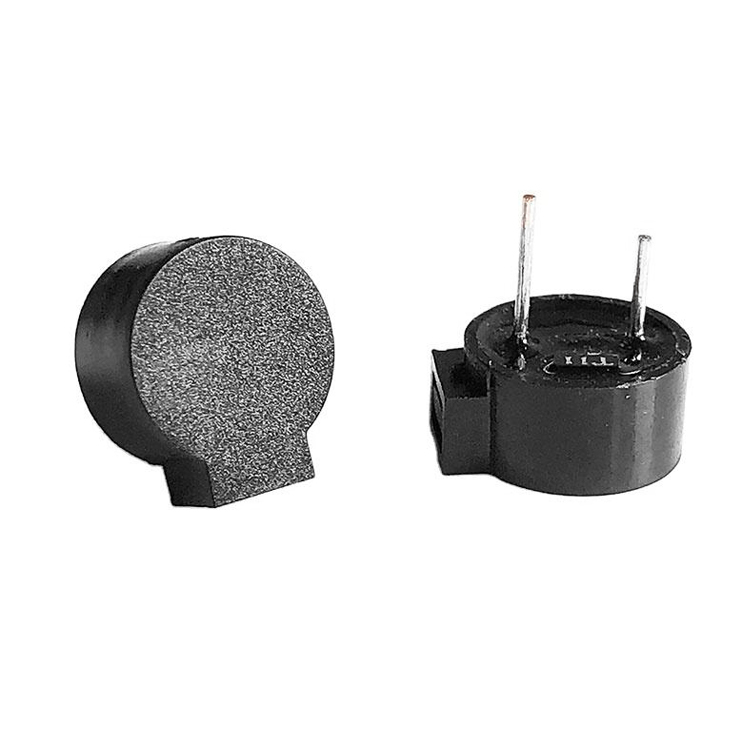

Magnetic Passive Buzzer YN-DCW9650-27PB-4 | 10.8*9.6*5mm | 1.5/3/5V | ≤80mA | ≥85dB | 1-2/2-4/4-7V | -20~+60℃ | 0.8g | / | / | 6.5±2Ω;16±3Ω;30±3Ω; |
 |

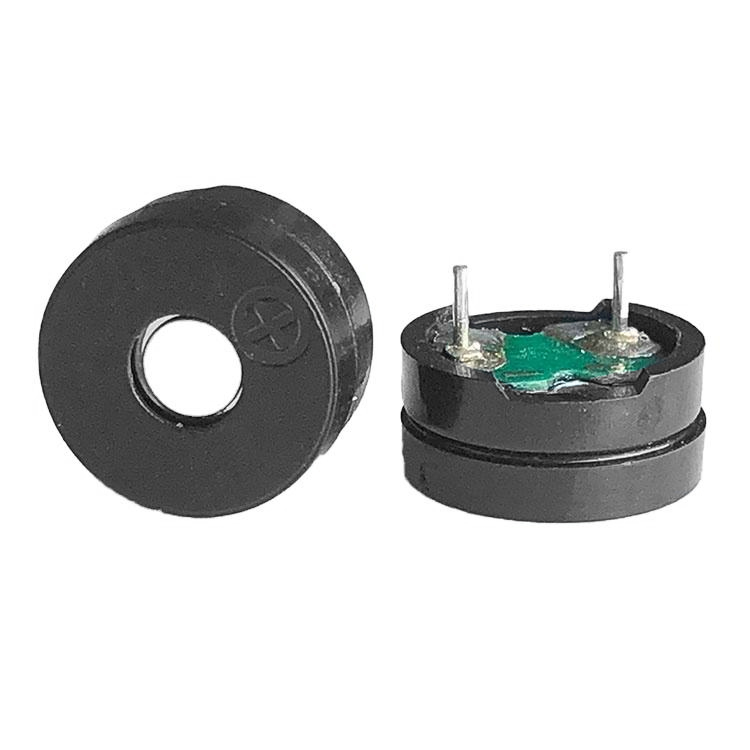

Magnetic Passive Buzzer YN-DCW12055-16-2003P6.5 | 12*5.5mm | 3/5V | ≤80mA | ≥80dB | 2-4/4-7V | -20~+60℃ | 1.3g | / | / | 16±3Ω；42±6Ω |
 |

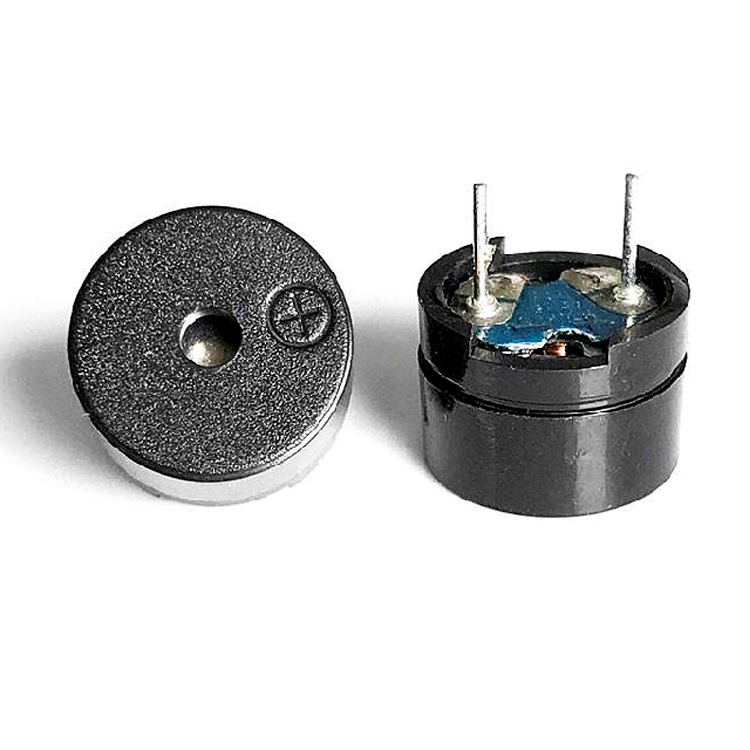

Magnetic Passive Buzzer YN-DCW12085-16-2003P-6.5 | 12*8.5mm | 3V | ≤30mA | ≥85dB | 1~12V | -20+70℃ | 2g | / | / | 16±4Ω |
 |

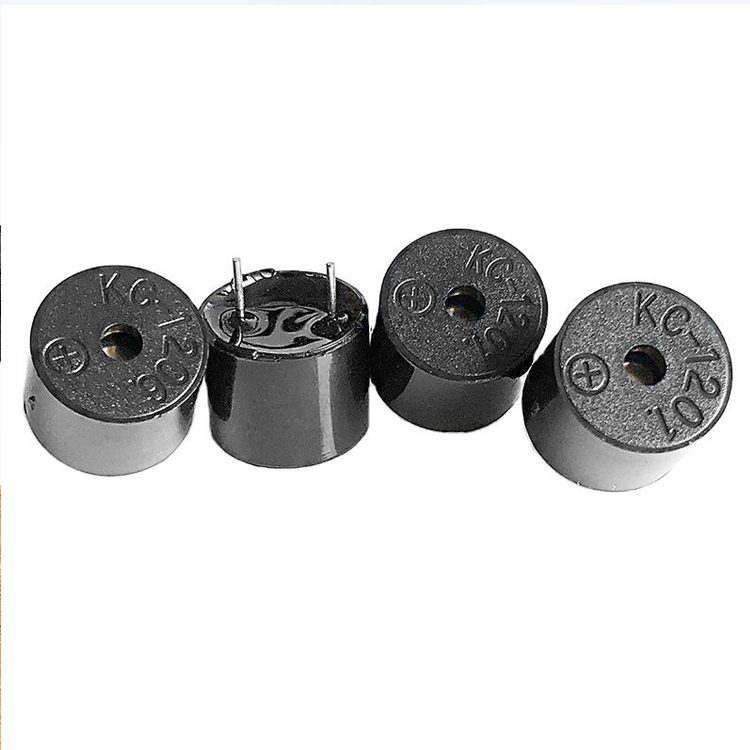

Magnetic Passive Buzzer YN-DCW12095-16-2003P-6.5 | 12*9.5mm | 3/5V | ≤70mA | ≥80dB | 2~4/4~6V | -20~+60℃ | 2g | / | / | 16±2Ω; 42±2Ω |
 |

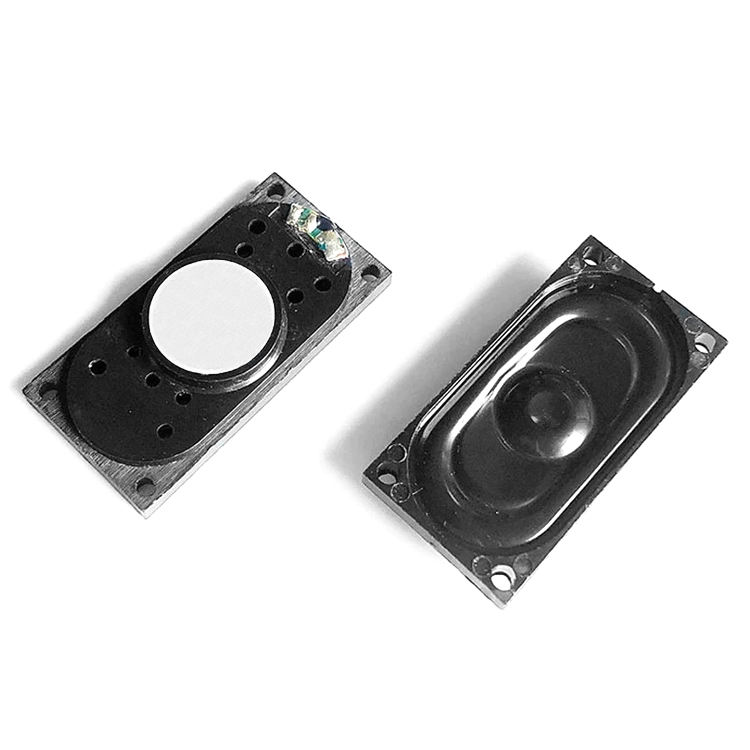

Dynamic Speaker YN4020-0802 | 40*20*6.7mm | 2W | 600±20% | 88±3dB | 2.5W | -30~+60℃ | 5.4g | / | / | 8±20%Ω |
 |

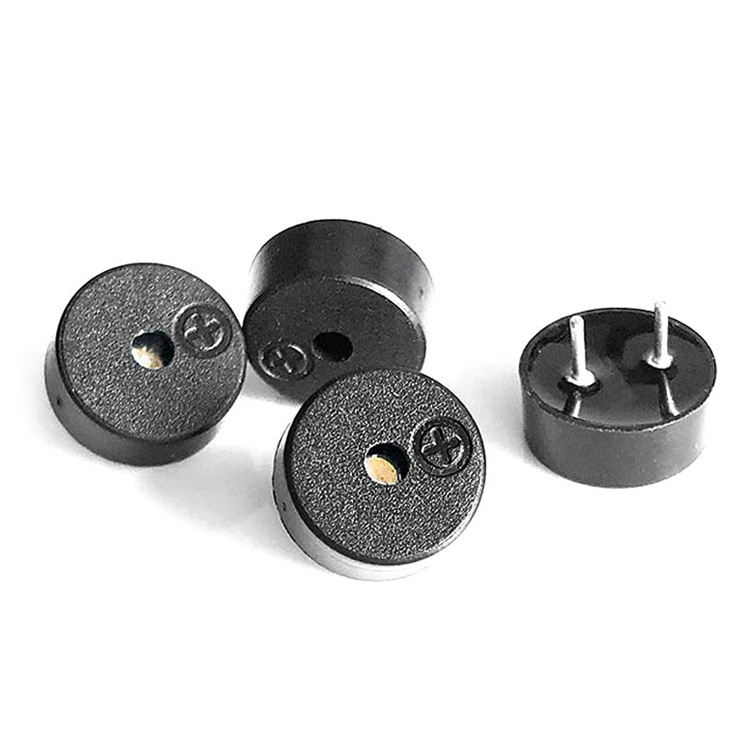

Magnetic Passive Buzzer YN-DCW9042-16-2703P-4 | 9*4.2mm | 3/5V | ≤80mA | ≥85dB | 2~4/3~6V | -20~+60℃ | 1g | / | / | 16±4Ω; 42±4Ω |
 |
Magnetic Passive Buzzer YN-DCW9042ST-16-2703P-4 | 9*4.2mm | 3V | ≤60mA | ≥85dB | 2~4V | -20~+60℃ | 1g | / | / | 16±4Ω |
