| Model | Product Name |
Product size（mm) |
Rated Voltage(V) |
Current Consumption(mA) |
SPL(dB) | Operating Voltage(V) |
Operating Temperature(℃) |
Weight(g) | Carton Size(cm) |
Quantity(pcs) | Gross Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

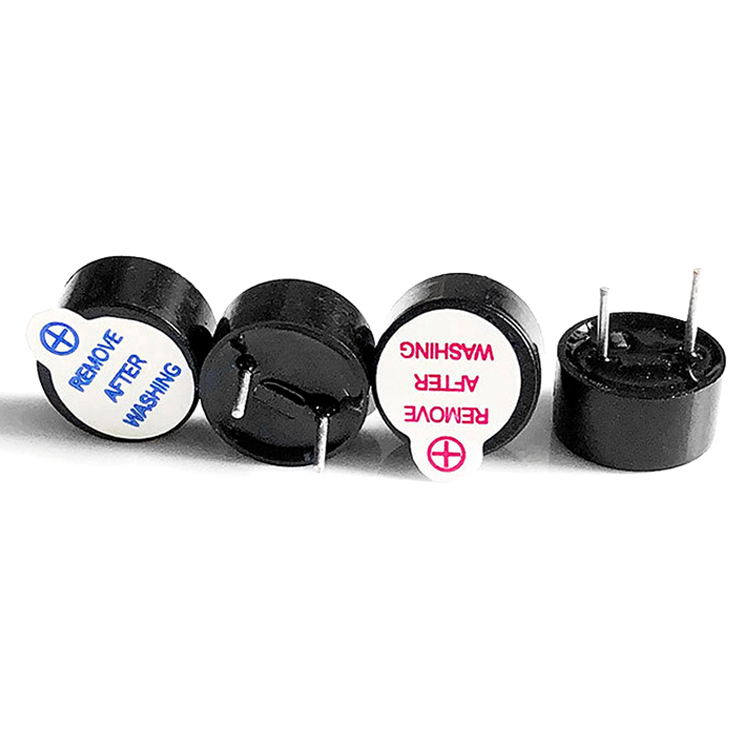

Magnetic Active Buzzer YN-DCY9650-2705P-5 | 9.6*9.6*5mm | 3/5/12V | ≤40mA | ≥85dB | 2~4/4~6/9~13V | -20~+60℃ | 1g | / | / | / |
 |

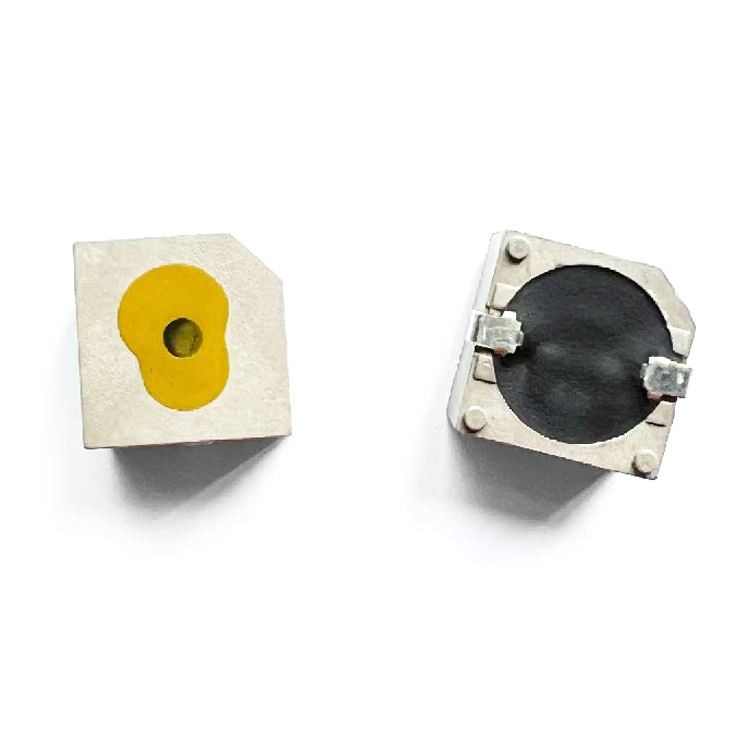

Magnetic Active Buzzer YN-DCY1310-2405S | 12.8*12.8*10mm | 5V | ≤30mA | ≥90dB | 4~7V | -30～+70℃ | 2g | / | / | / |
 |

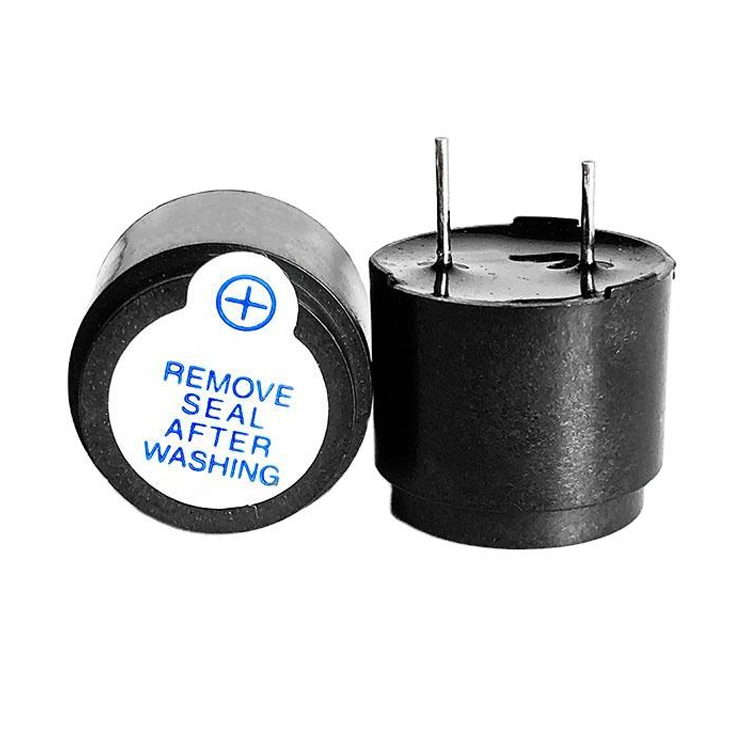

Magnetic Active Buzzer YN-DCY1614-2405P-7.6 | 16*14mm | 5V | ≤30mA | ≥85dB | 4~6V | -20+60℃ | 4.7g | / | / | / |
 |

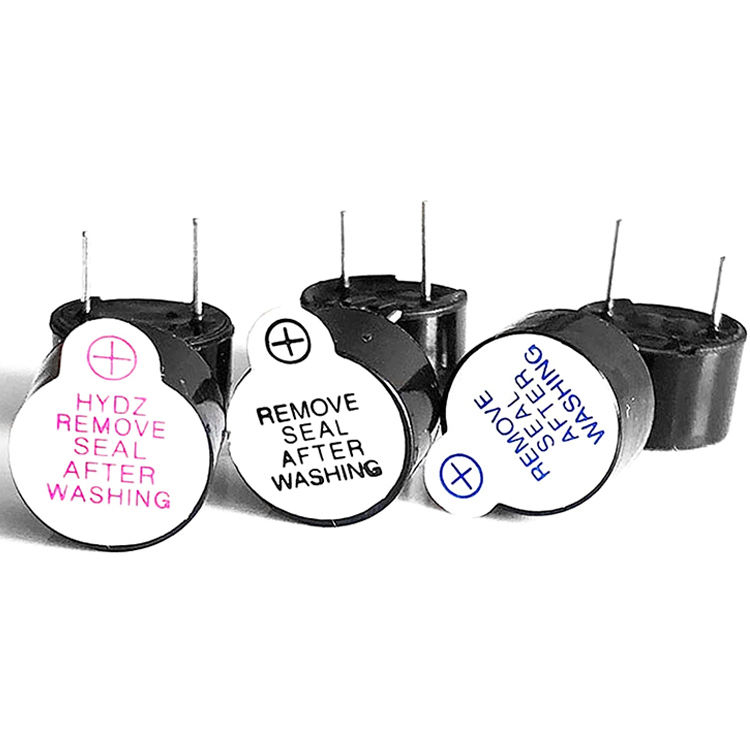

Magnetic Active Buzzer YN-DCY12075-2712P-7.6 | 12*7.5mm | 12V | ≤30mA | ≥85dB | 9~13V | -20+60℃ | 1.5g | / | / | / |
 |

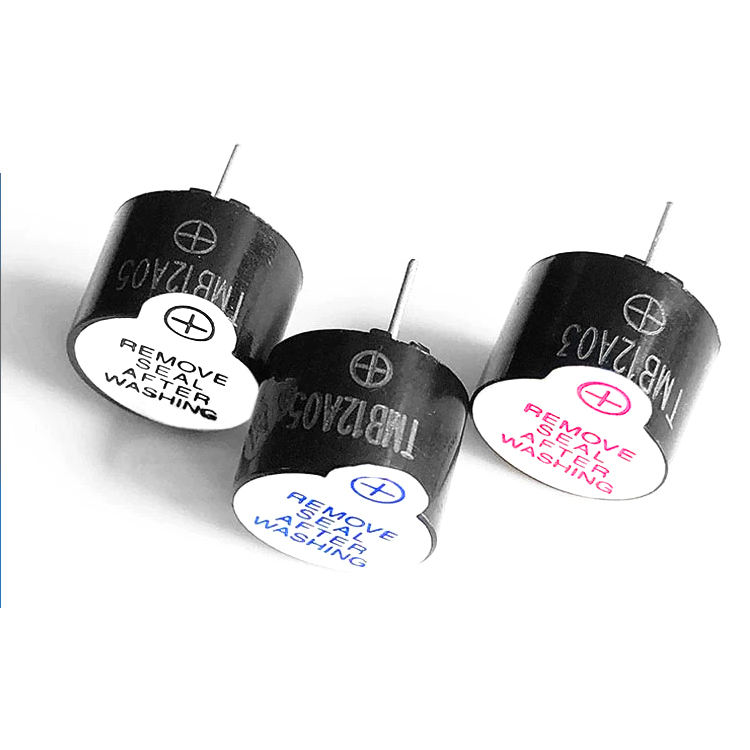

Magnetic Active Buzzer YN-DCY12095 | 12*9.5mm | 3/5/12V | ≤30mA | ≥85dB | 2~4/4~7/10~14V | -20~+60℃ | 2g | / | / | / |
 |

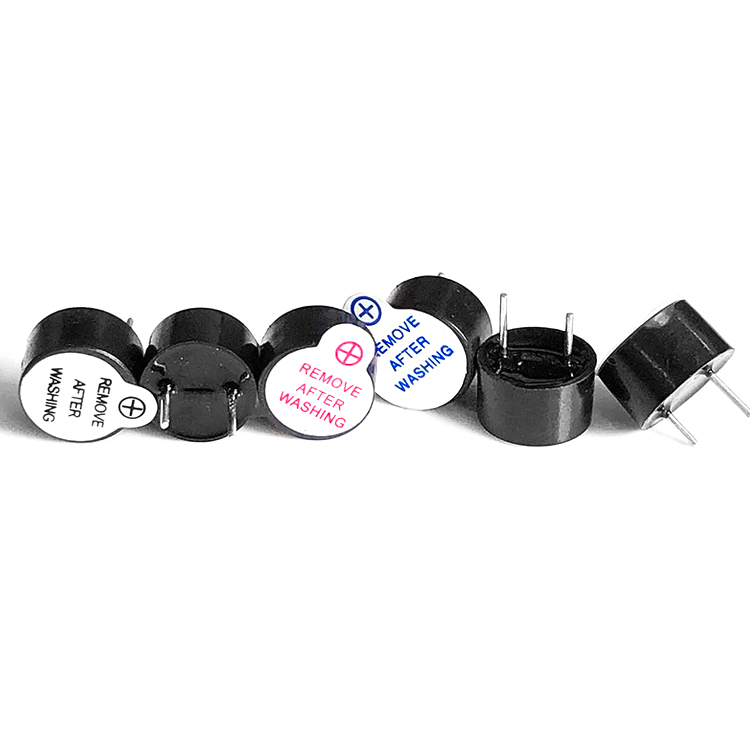

Magnetic Active Buzzer YN-DCY9055-2700P-5 | 9*5.5mm | 3/5/12V | ≤30mA | ≥85dB | 2~4/4~6/9~13V | -20~+60℃ | 1.1g | / | / | / |
 |
Magnetic Active Buzzer YN-DCY12065-27P-7.6 | 12*6.5mm | 3/5/12V | ≤30mA | ≥85dB | 2~4/4~6/7~13V | -20~+60℃ | 1.6g | / | / | / |
 |

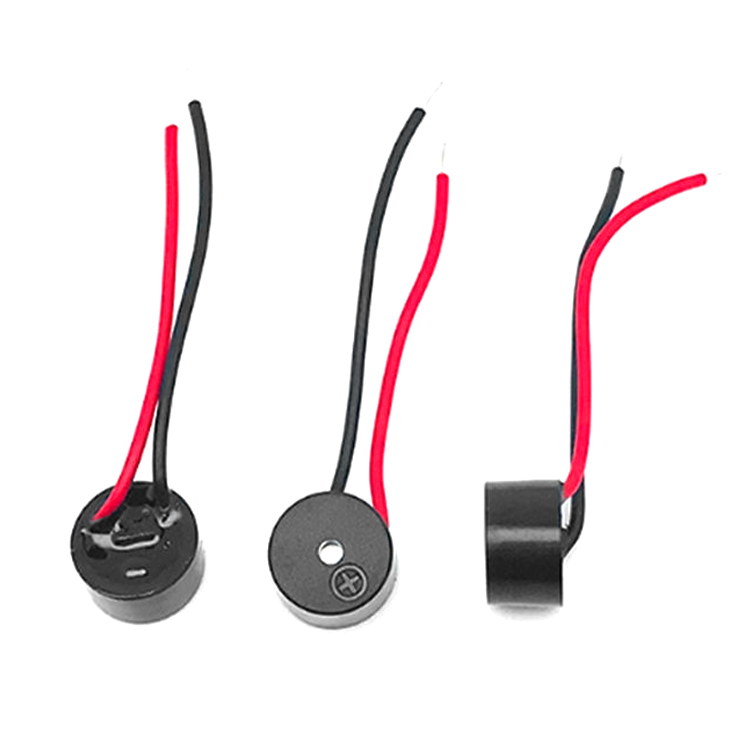

Magnetic Active Buzzer YN-DCY9055-2703W-40 | 9*5.5mm | 3/5/12V | ≤30mA | ≥85dB | 2~4/4~6/9~13V | -20~+60℃ | 1.5g | / | / | / |
 |

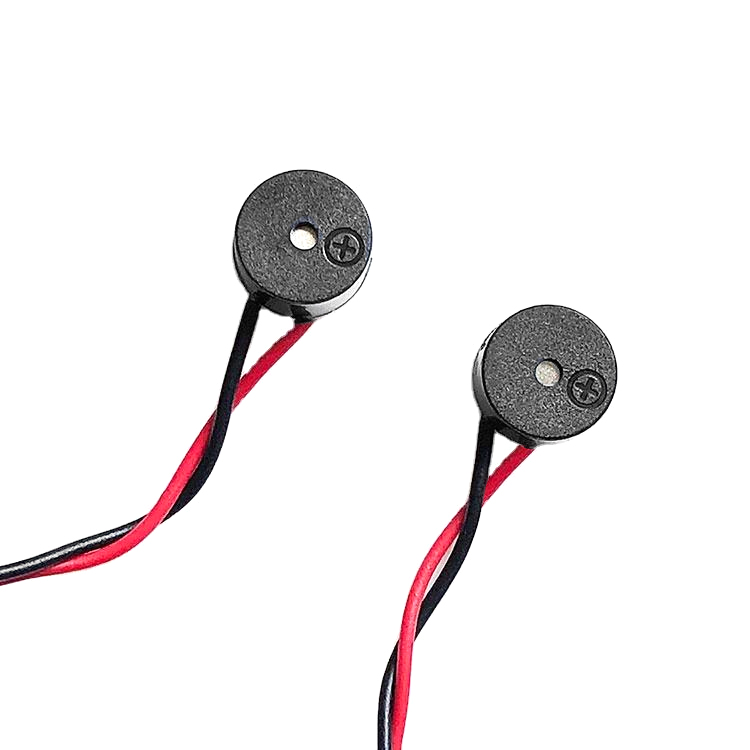

Magnetic Active Buzzer YN-DCY9042-2703W-40 | 9*4.2mm | 3V | ≤30mA | ≥80dB | 2~4V | -20~+60℃ | 1.2g | / | / | / |
 |

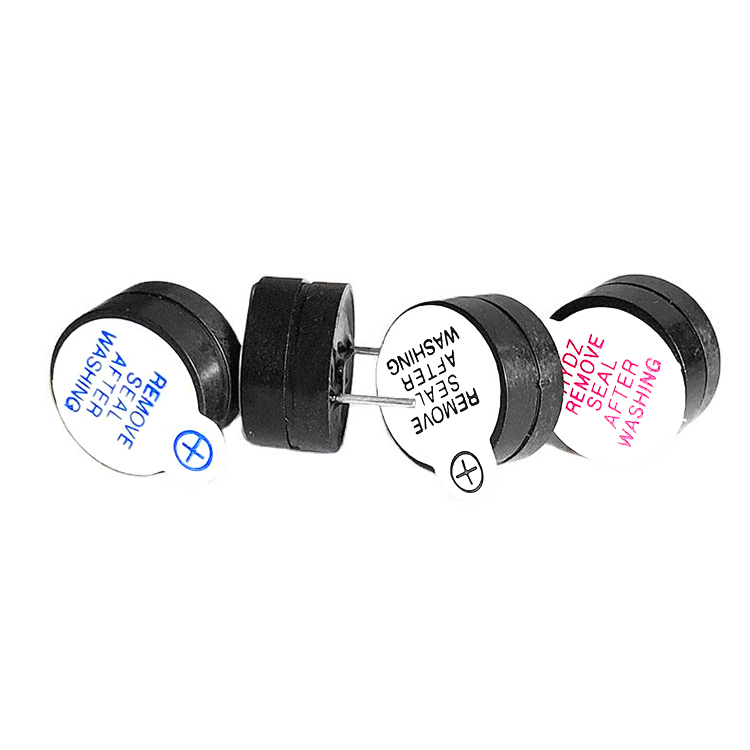

Magnetic Active Buzzer YN-DCY12065ST-2403P-7.6 | 12*6.5mm | 3/5/12V | ≤30mA | ≥85dB | 2~4/4~6/9~13V | -20~+60℃ | 1.6g | / | / | / |
 |

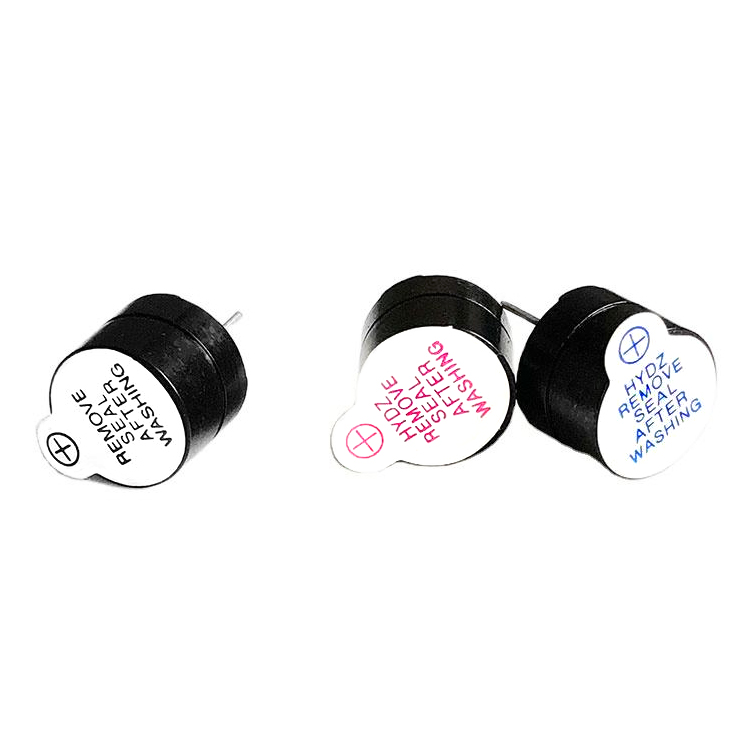

Magnetic Active Buzzer YN-DCY12095ST-2305P-7.6 | 12*9.5mm | 3/5/12V | ≤30mA | ≥85dB | 2~4/4~6/9~13V | -20~+60℃ | 2g | / | / | / |
 |
Magnetic Active Buzzer YN-DCY12095-2303WD60 | 12*9.5mm | 3V | ≤30mA | ≥80dB | 2~5V | -20~+45℃ | 2g | / | / | / |
