| Model | Product Name |
Product size（mm) |
Rated Voltage(V) |
Current Consumption(mA) |
SPL(dB) | Operating Voltage(V) |
Operating Temperature(℃) |
Weight(g) | Carton Size(cm) |
Quantity(pcs) | Gross Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

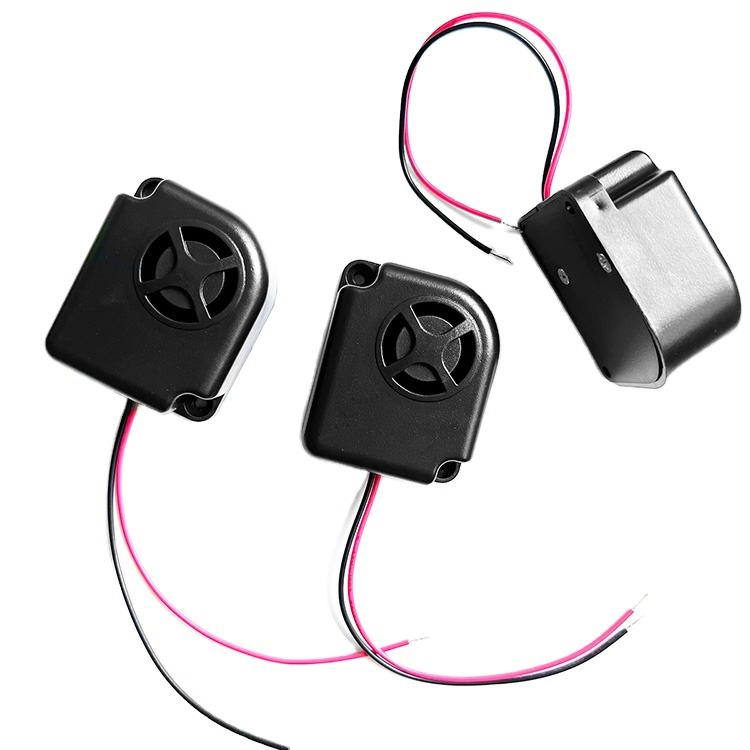

Piezo Active Buzzer YN-YDY4739-2812W100 | 47.3*39.3*23.5mm | 12V | ≤100mA | ≥115dB | 6~15V | -10~+60℃ | 53g | / | / | / |
 |

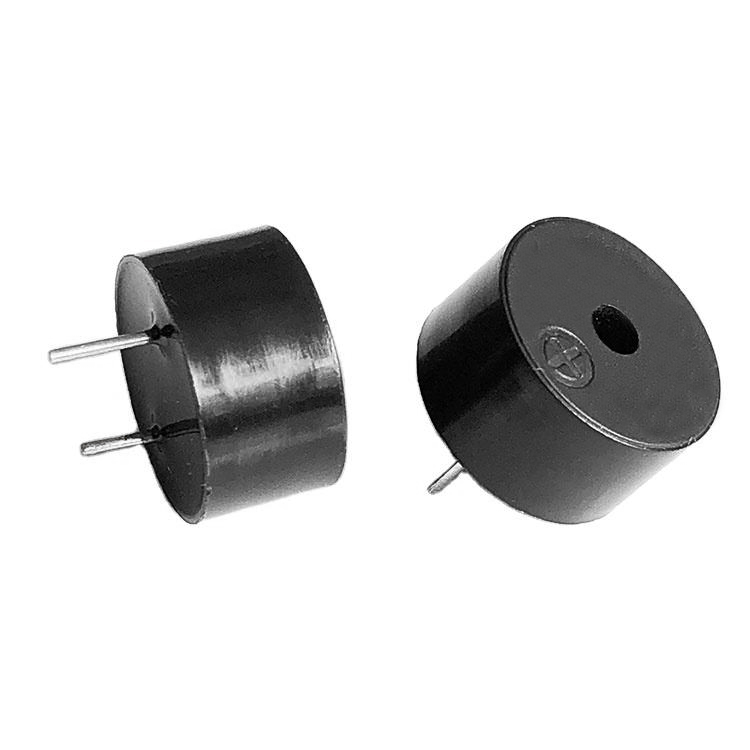

Piezo Active Buzzer YN-YDY14075-4012P-7.6 | 14*7.5mm | 12V | ≤12mA | ≥85dB | 3-24V | -10~+60℃ | 1.1g | / | / | / |
 |

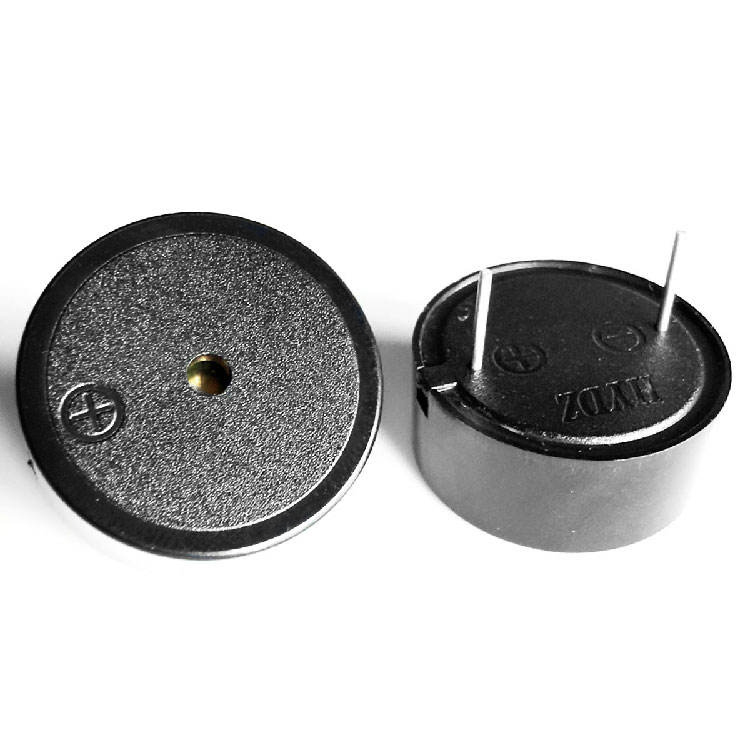

Piezo Active Buzzer YN-YDY2310-3512P-15 | 23*10mm | 3/5/12/24V | ≤10mA | ≥85dB | 3-24V | -10~+60℃ | 3.3g | / | / | / |
 |

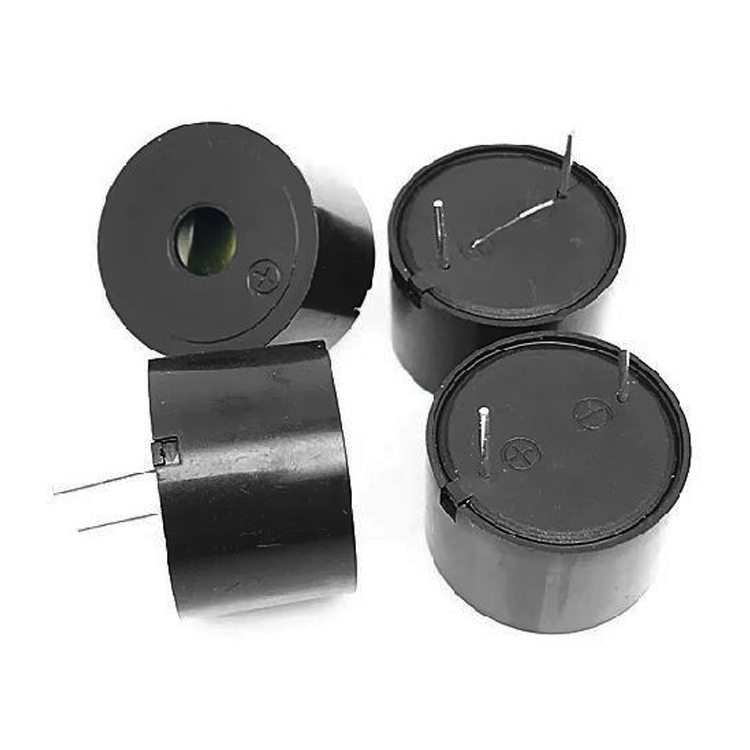

Piezo Active Buzzer YN-YDY2316-3512P-15 | 23*16mm | 12V | ≤12mA | ≥95dB | 3-24V | -10~+60℃ | 4.5g | / | / | / |
 |

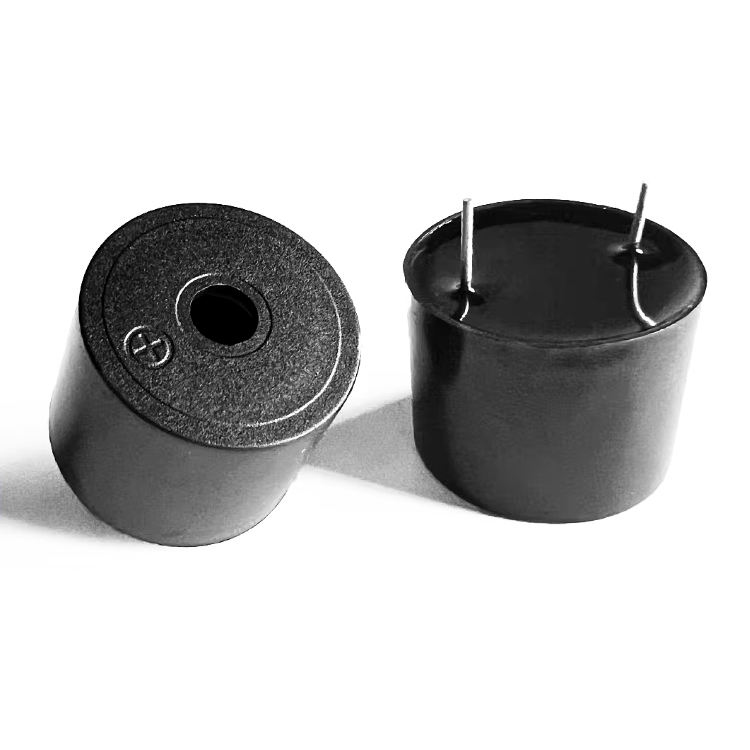

Piezo Active Buzzer YN-YDY2319-3712P-15 | 23*19mm | 12V | ≤12mA | ≥95dB | 3-24V | -10~+60℃ | 5.3g | / | / | / |
 |

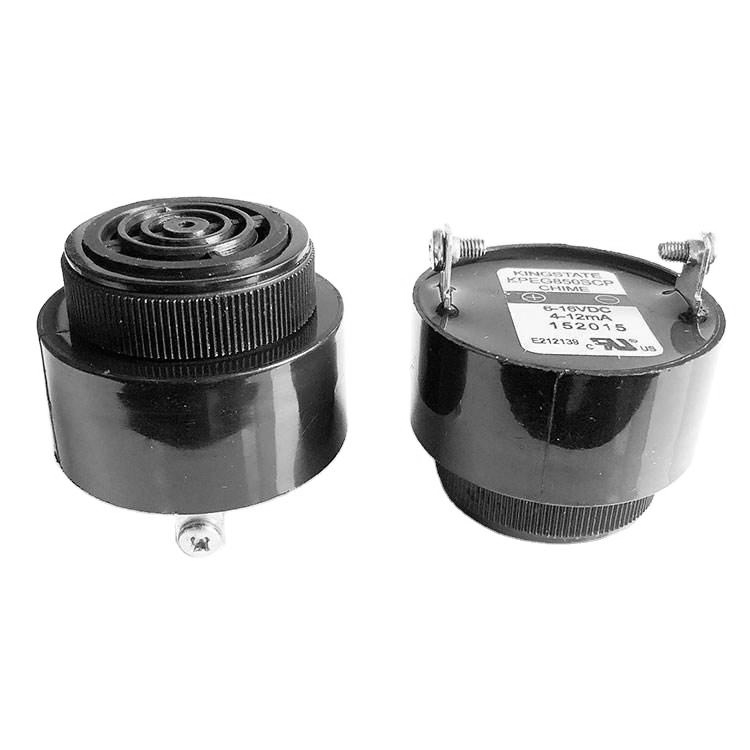

Piezo Active Buzzer YN-YDY4333-2912P-33 | 43*33mm | 12V | ≤20mA | ≥90dB | 6~24V | -10~+60℃ | 40g | / | / | / |
 |

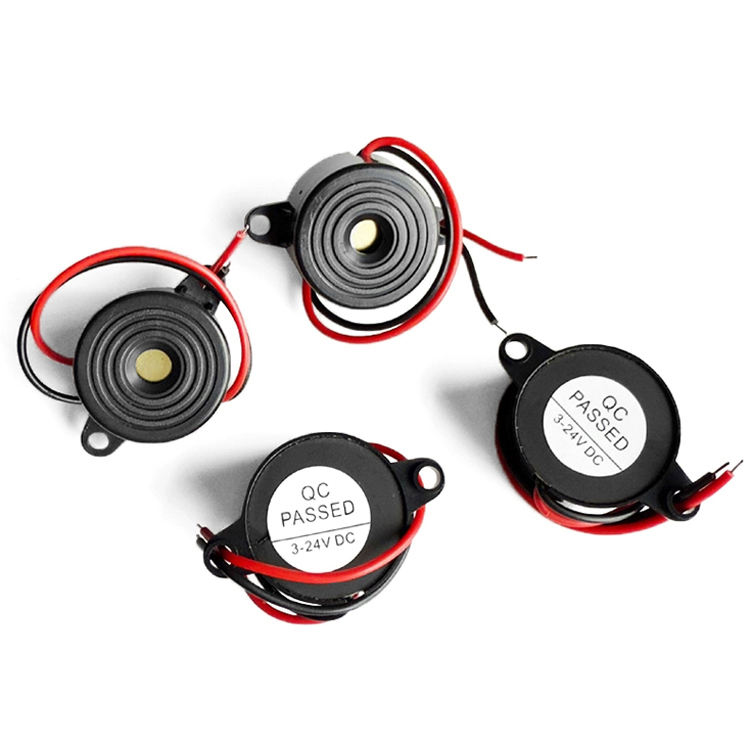

Piezo Active Buzzer YN-YDY2312-3512W | 23*12MM | 12V | ≤15mA | ≥90dB | 3-24V | -10~+60℃ | 4g | / | / | / |
 |

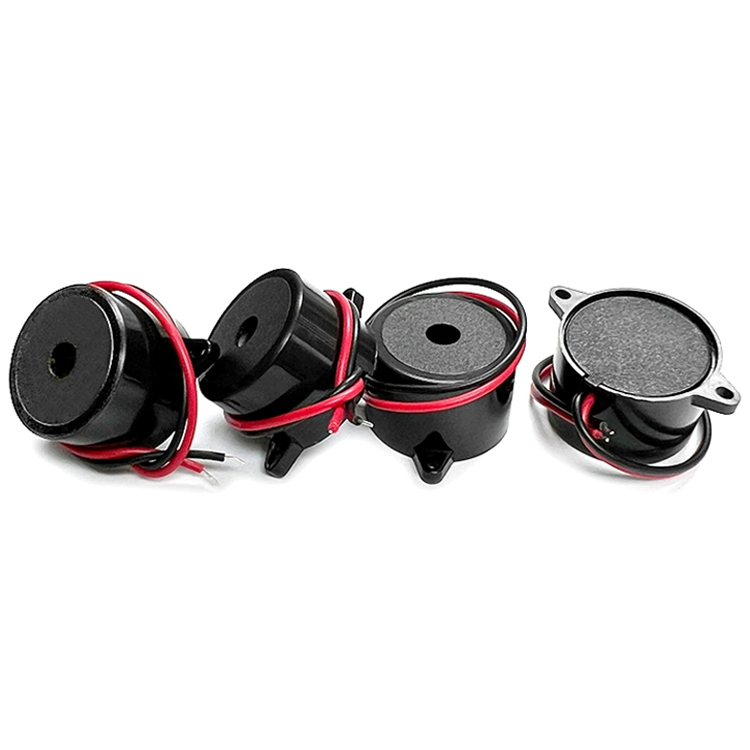

Piezo Active Buzzer YN-YDY2316-3512W100 | 23*16mm | 12V | ≤12mA | ≥90dB | 3-24V | -10~+60℃ | 5.1g | / | / | / |
 |

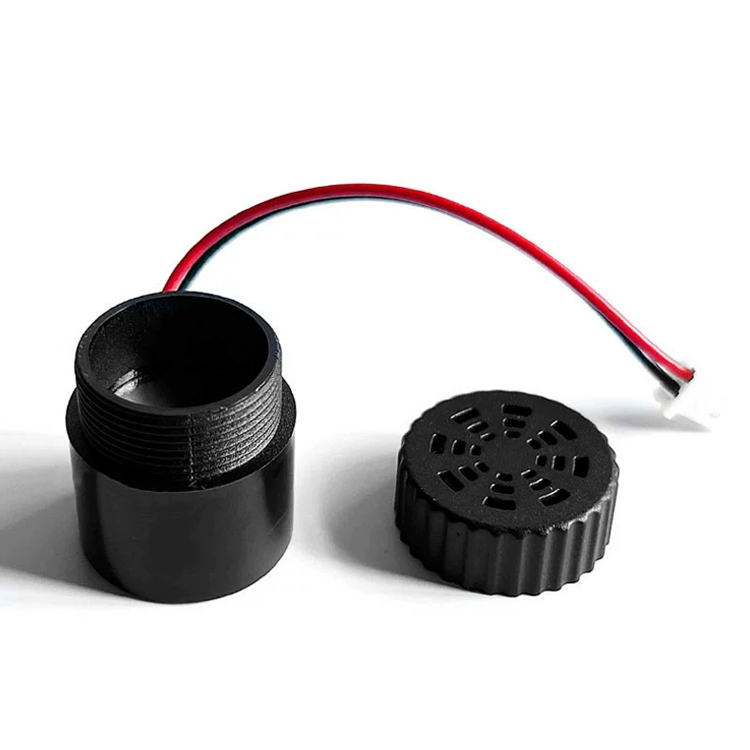

Piezo Active Buzzer YN-YDY2325-3512W | 23*25mm | 12V | ≤12mA | ≥90dB | 5-15V | -20~+70℃ | 6.5g | / | / | / |
 |

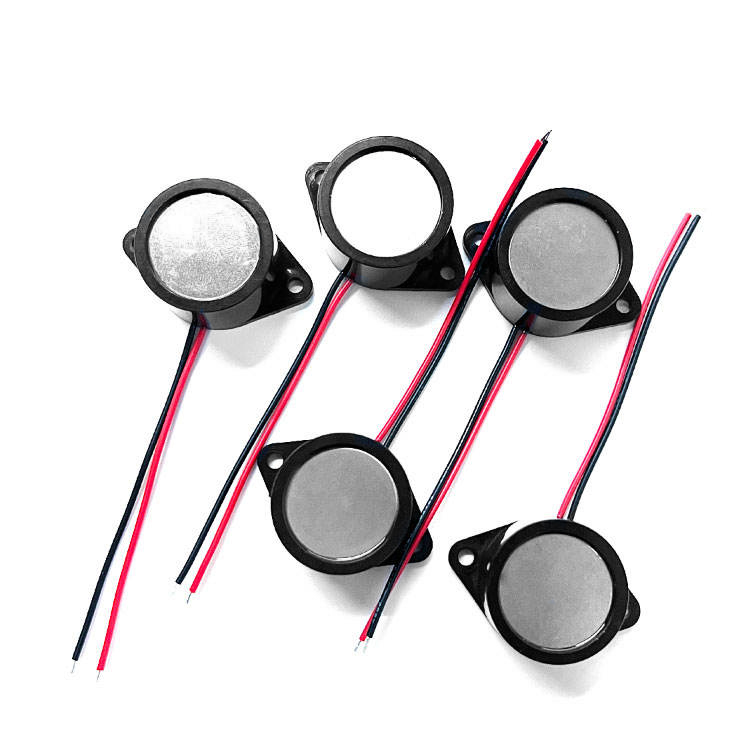

Piezo Active Buzzer YN-YDY2616-3305W | 25.6*16mm | 12V | ≤35mA | ≥85dB | 6-14V | -10~+60℃ | 10.5g | / | / | / |
 |
Piezo Active Buzzer YN-YDY-3015A-3512W | 30*15mm | 12V | ≤10mA | ≥90dB | 3-24V | -20~+70℃ | 7.2g | / | / | / |
 |

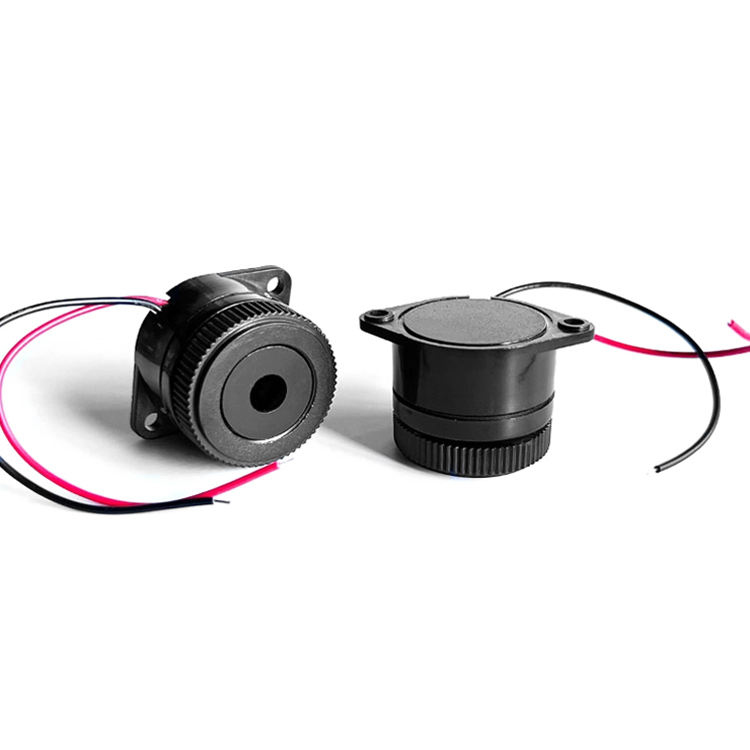

Piezo Active Buzzer YN-YDY30245-3512W | 30*24.5mm | 5/12/24V | ≤15mA | ≥100dB | 3-26V | -20~+60℃ | 13.2g | / | / | / |
