| Model | Product Name |
Product size（mm) |
Rated Voltage(V) |
Current Consumption(mA) |
SPL(dB) | Operating Voltage(V) |
Operating Temperature(℃) |
Weight(g) | Carton Size(cm) |
Quantity(pcs) | Gross Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

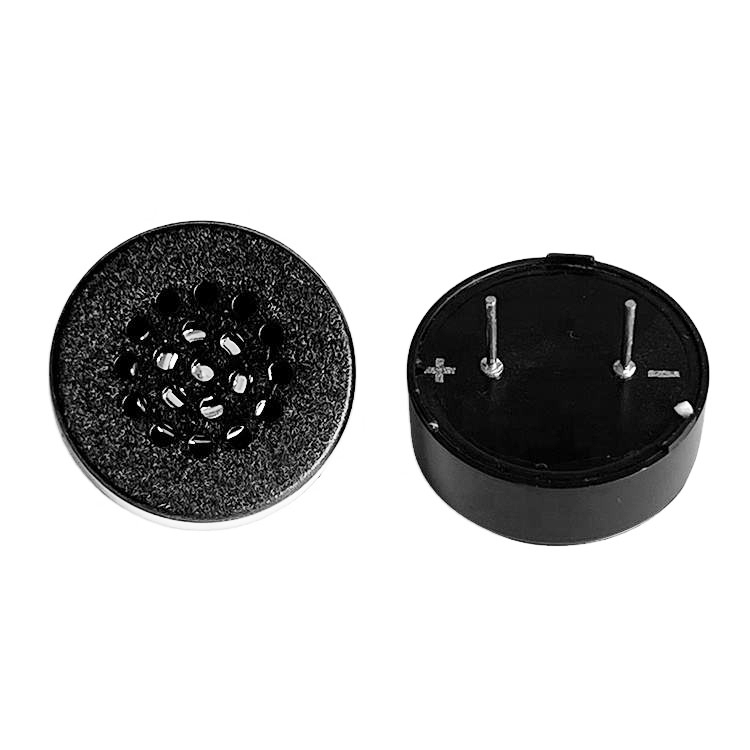

Dynamic Speaker YN2308-08005P-10 | 23*8.6mm | 0.5W | / | 85±3dB | 1W | -30～+70℃ | 1.2g | / | / | 8±15%Ω |
 |
Dynamic Speaker YN3011-08005P15 | 30*11mm | 0.5W | / | 85±3dB | 1W | -30~+60℃ | 9g | / | / | 8±20%Ω |
 |

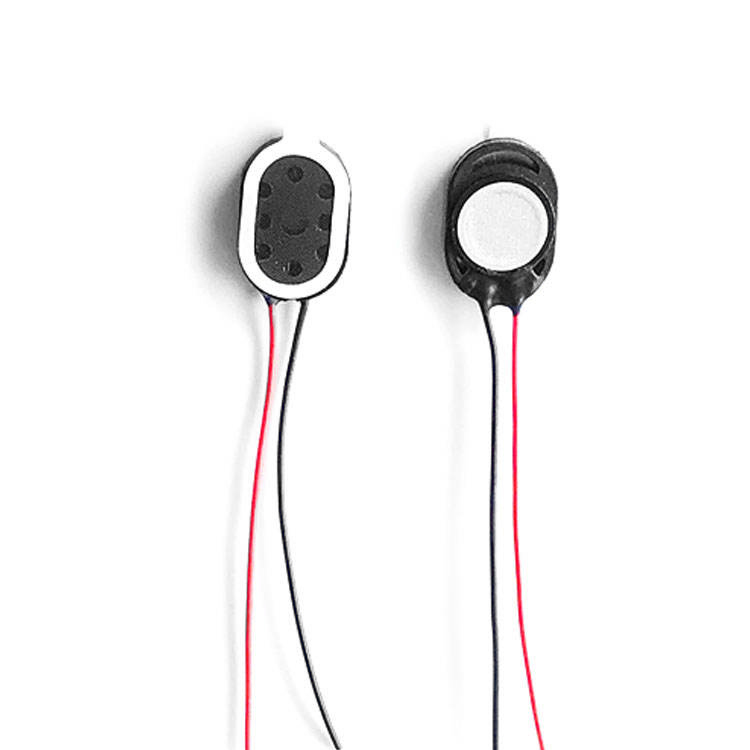

Dynamic Speaker YN1510-08005W45 | 15*10*3.3mm | 0.5W | / | 83±3dB | 0.8W | -20~+70℃ | 0.7g | / | / | 8±15%Ω |
 |

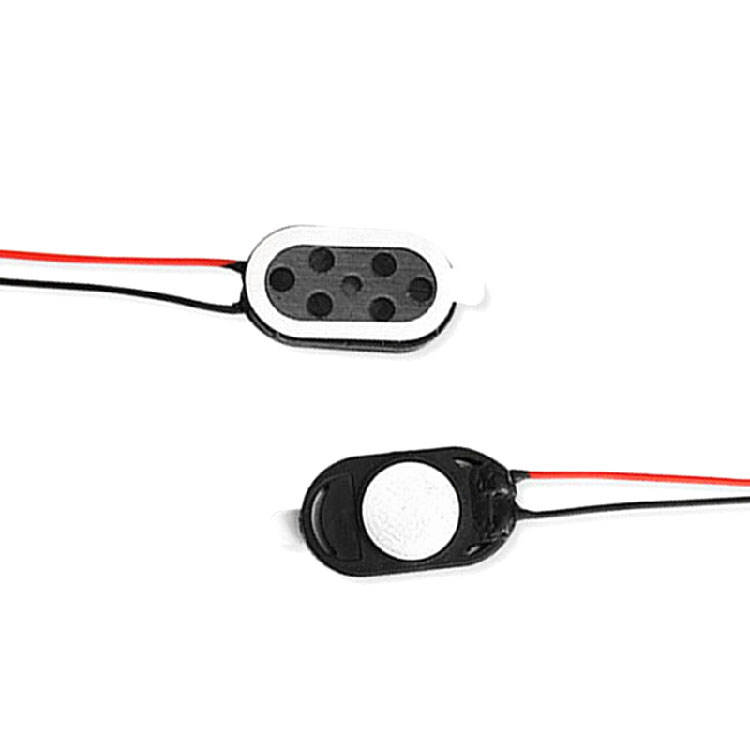

Dynamic Speaker YN1810-08008W-28 | 18*10*4.2mm | 0.8W | / | 85±3dB | 1W | -20~+50℃ | 1.2g | / | / | 8±15%Ω |
 |

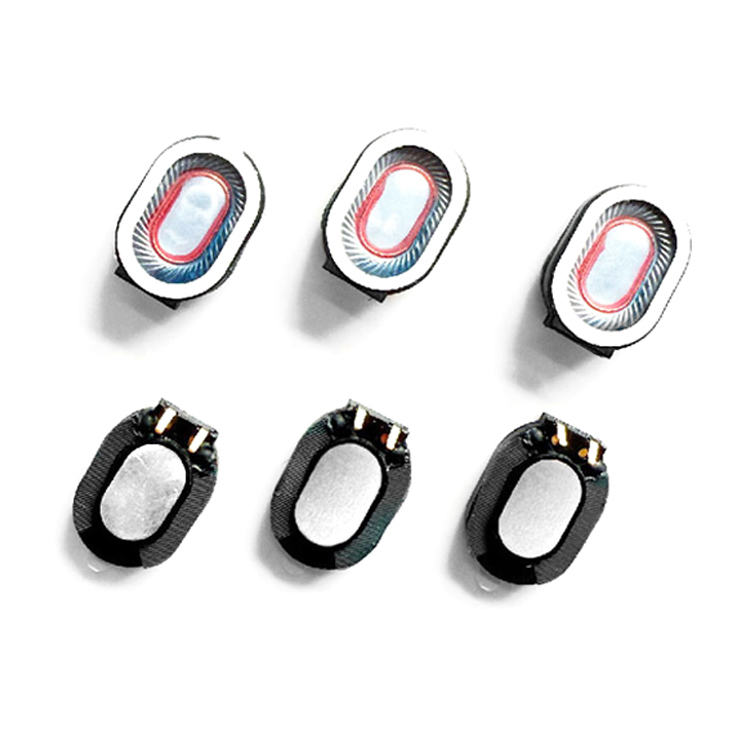

Dynamic Speaker YN2014-0801T | 20*14*4.1mm | 1W | / | 90±3dB | 1.2W | -25~+65℃ | 2g | / | / | 8±15%Ω |
 |

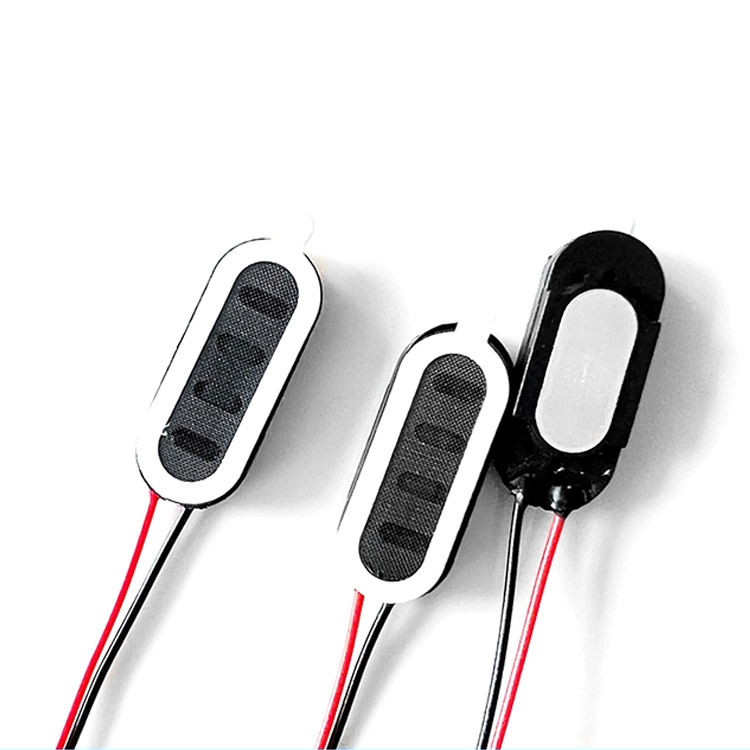

Dynamic Speaker YN2209-08008W-78 | 22*9*4mm | 0.8W | / | 90±3dB | 1W | -20~+50℃ | 2g | / | / | 8±15%Ω |
 |

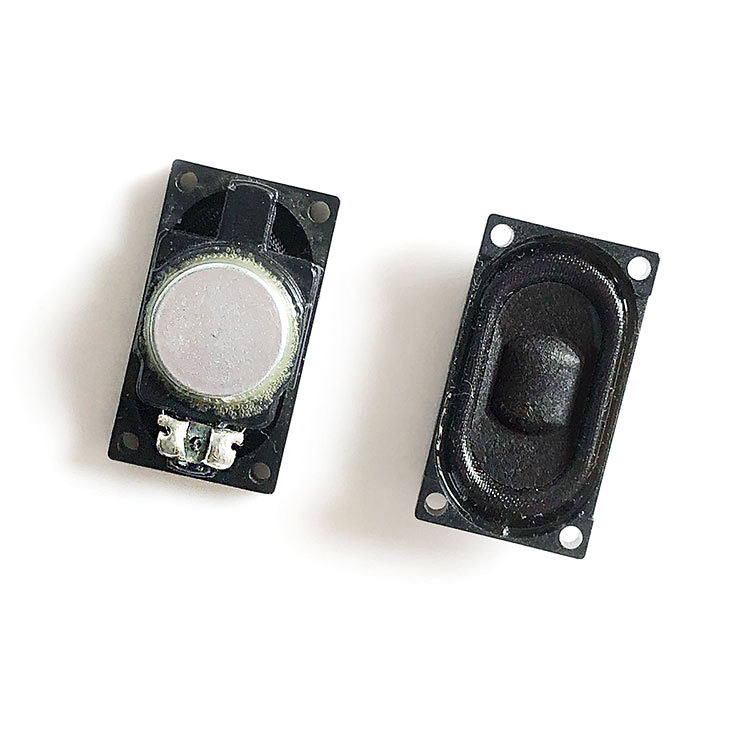

Dynamic Speaker YN2514-0402 | 25*14*7.2mm | 2W | / | 80±3dB | 2.5W | -30～+65℃ | 9.68g | / | / | 4Ω±15% |
 |

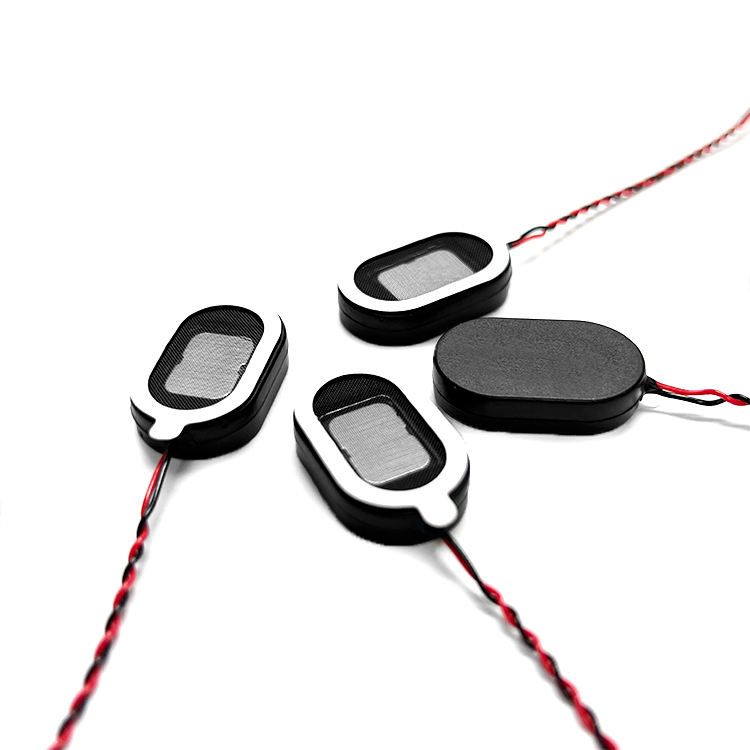

Dynamic Speaker YN2415-0801WD180 | 24*15*5.1mm | 0.5W | / | 85±3dB | 1W | -30~+60℃ | 7g | / | / | 8±15%Ω |
 |

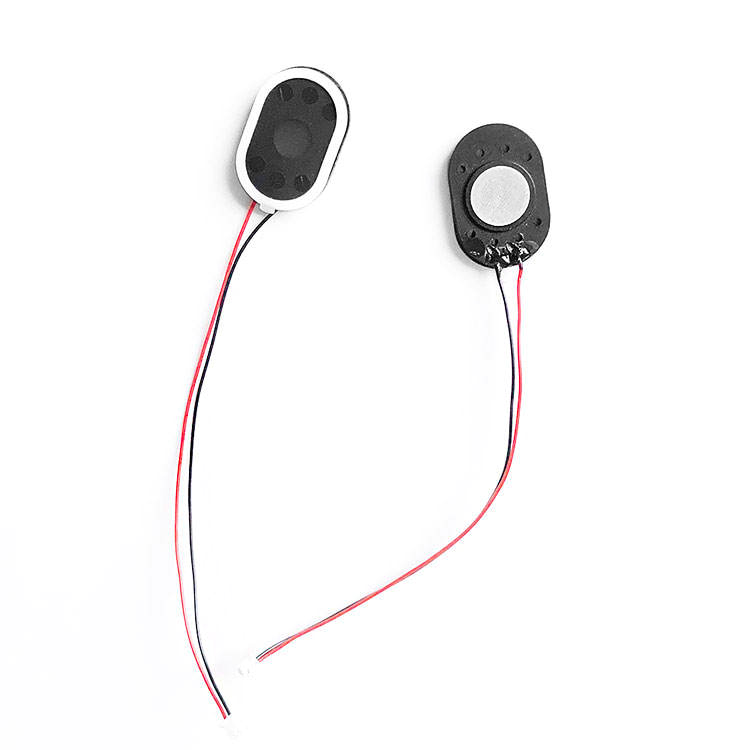

Dynamic Speaker YN3020-0801W40 | 30*20*4mm | 1W | / | 90±3dB | 1.2W | -30～+70℃ | 2.5g | / | / | 8±15%Ω |
 |
Dynamic Speaker YN3525-0802DW-170 | 35*25*7.4mm | 2W | / | 93±3dB | 2.5W | -30～+70℃ | 6.05g | / | / | 8±15%Ω |
 |

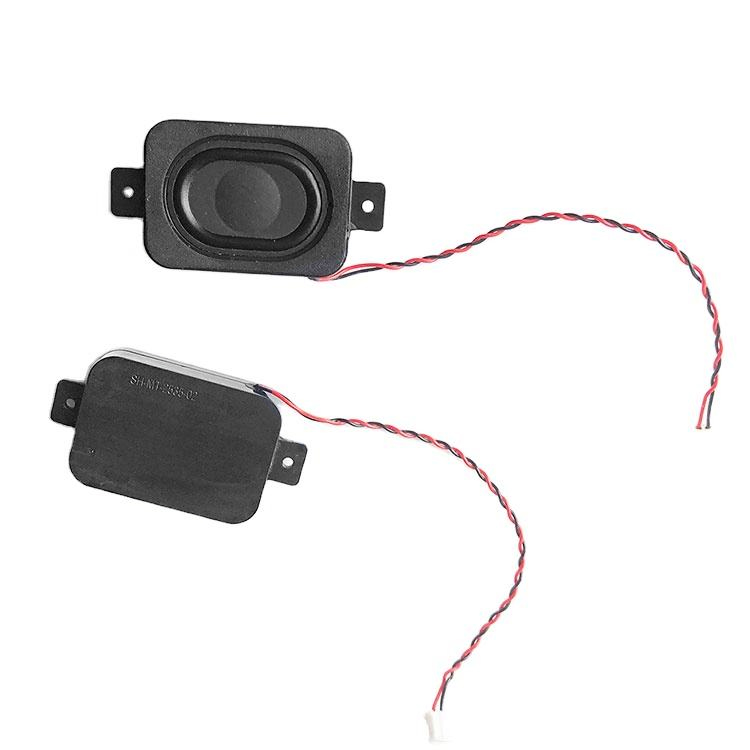

Dynamic Speaker YN4230-0403WD-150 | 40*20*6 | 3W | / | 90±3dB | 3.5W | -30~+60℃ | 18g | / | / | 4±15%Ω |
 |
Dynamic Speaker YN23DT-0801 | 23*4.3mm | 1W | / | 87±3dB | 1.5W | -30~+65℃ | 4.8g | / | / | 8±20%Ω |
