| Model | Product Name |
Product size（mm) |
Rated Voltage(V) |
Current Consumption(mA) |
SPL(dB) | Operating Voltage(V) |
Operating Temperature(℃) |
Weight(g) | Carton Size(cm) |
Quantity(pcs) | Gross Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

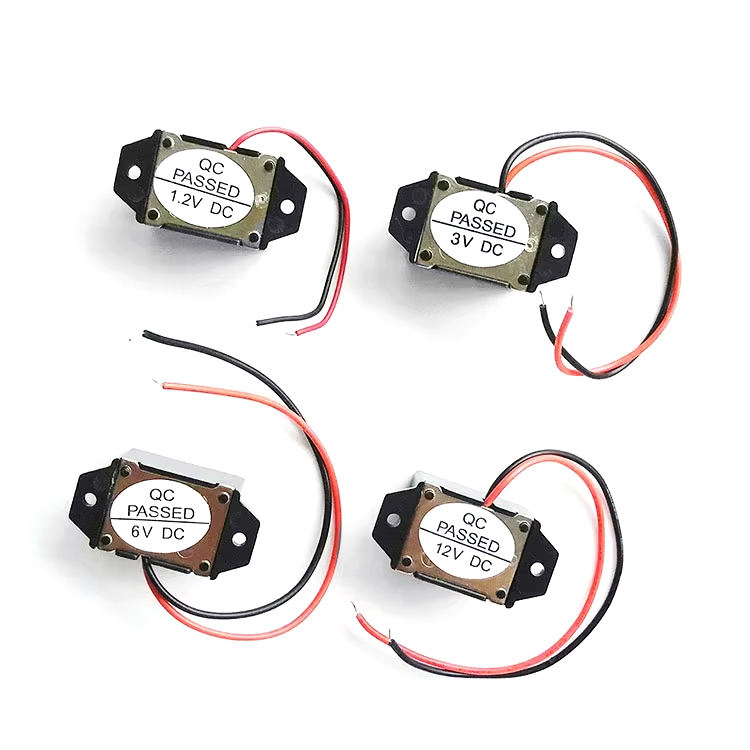

Mechanical Active Buzzer YN-JXY2317W105 | 23.5*16.5*H15.5mm | 1.2/3/6/12V | ≤30mA | ≥85dB | 0.5~1.5/2~4/5~7/10~13V | -20~+60℃ | 7.6g | / | / | / |
 |
Mechanical active buzzer YN-JXY2315-0403W100 | 22.5*16*14.5mm | 3V | ≤20mA | ≥70dB | 2~5V | -20~+70℃ | 10g | / | / | / |
 |
Magnetic Active Buzzer YN-JXY2317-0403P-7.6 | 23*17*15mm | 3V | ≤20mA | ≥70dB | 2~5V | -20~+70℃ | 10g | / | / | / |
