| Model | Product Name |
Product size（mm) |
Rated Voltage(V) |
Current Consumption(mA) |
SPL(dB) | Operating Voltage(V) |
Operating Temperature(℃) |
Weight(g) | Carton Size(cm) |
Quantity(pcs) | Gross Weight(Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
Piezo Passive Buzzer YN-YDW12055-4005PA-5 | 12.5*5.5mm | 3/5/12V | ≤5mA | ≥83dB | 1-25V | -10~+60℃ | 0.7g | / | / | / |
 |
Piezo Passive Buzzer YN-YDW9555-4012PA4 | 9.5*5.5mm | 3/5/12V | ≤5mA | ≥70dB | 1~25V | -10~+60℃ | 0.4g | / | / | / |
 |
Piezo Passive Buzzer YN-YDW1207-4012PA-6.5 | 12.5*7mm | 3/5/12V | ≤5mA | ≥80dB | 2~25V | -10~+60℃ | 0.8g | / | / | / |
 |
Piezo Passive Buzzer YN-YDW1407-4005PA-7.6 | 14*7mm | 5V | ≤3mA | ≥85dB | 1-30V | -10~+60℃ | 0.9g | / | / | / |
 |
Piezo Passive Buzzer YN-YDW17045-4005P-10 | 17*4.5mm | 3/5/12V | ≤5mA | ≥85dB | 1~30V | -10~+60℃ | 1g | / | / | / |
 |
Piezo Passive Buzzer YN-YDW2207-4012P10 | 22*7mm | 3/5/12V | ≤5mA | ≥85dB | 1-30V | -10~+60℃ | 2.5g | / | / | / |
 |

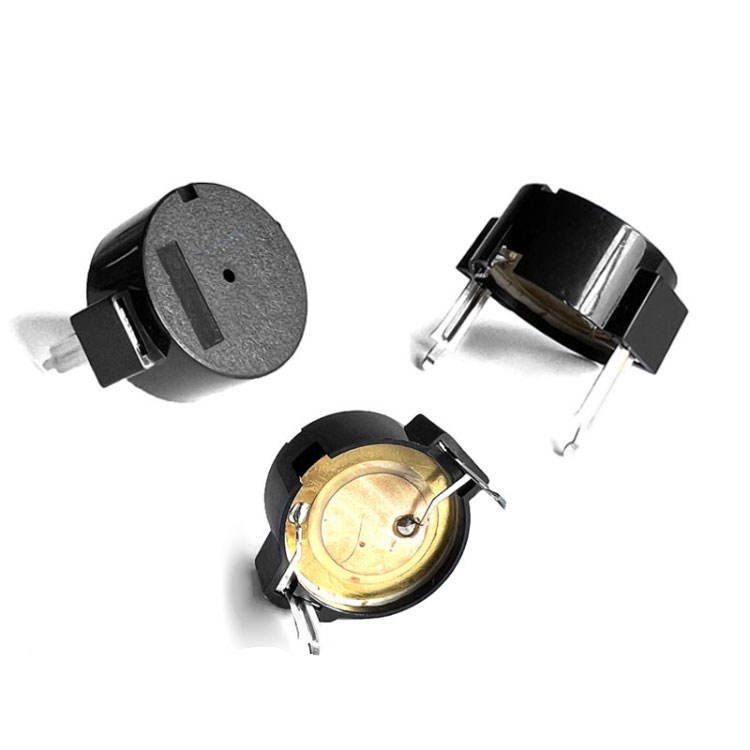

Piezo Passive Buzzer YN-YDW2211-2005P3 | 21.5*11mm | 5V | ≤3mA | ≥80dB | 2.5~25V | -20~+70℃ | 5g | / | / | / |
 |
Piezo Passive Buzzer YN-YDW2722-2712P-5 | 27*22*H7mm | 3/5/12V | ≤5mA | ≥90dB | 1-30V | -10~+60℃ | 2.8g | / | / | / |
 |

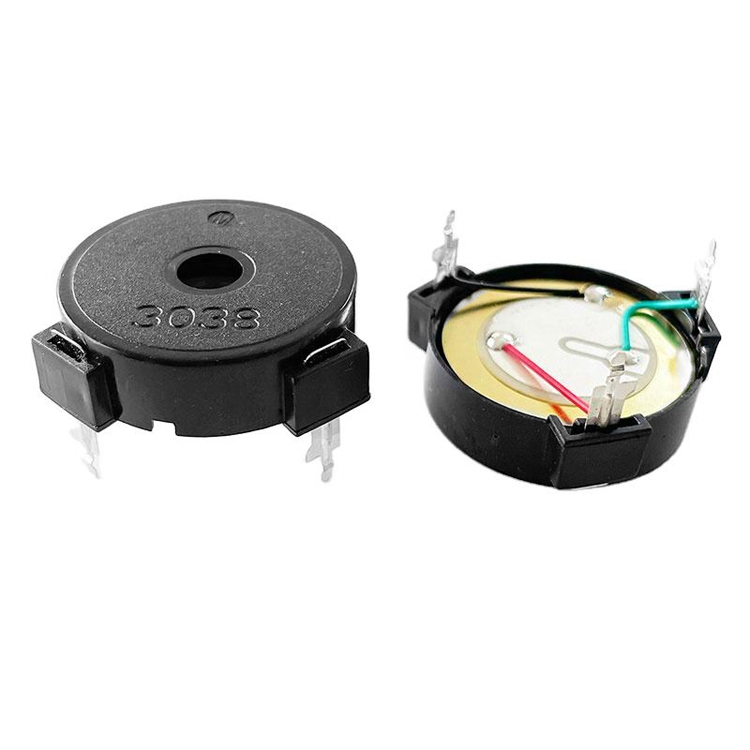

Piezo Passive Buzzer YN-YDW3010-3312P3 | 29.6*9.6mm | 12V | ≤3mA | ≥90dB | 3~20V | -10~+60℃ | 3.6g | / | / | / |
 |

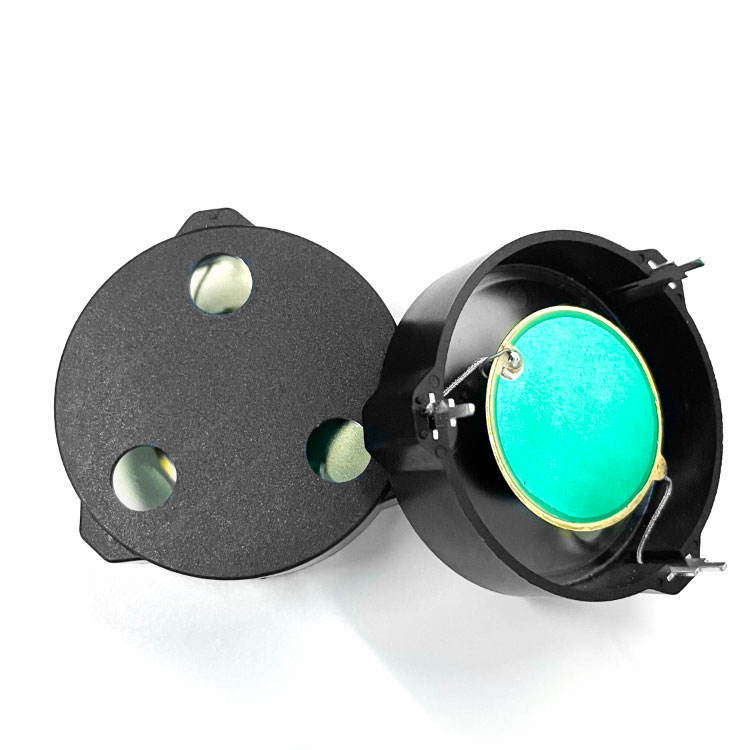

Piezo Passive Buzzer YN-YDW5215-3018P | 51.5*15.2mm | 18V | ≤200mA | ≥90dB | 60V | -20～+95℃ | 14g | / | / | / |
 |

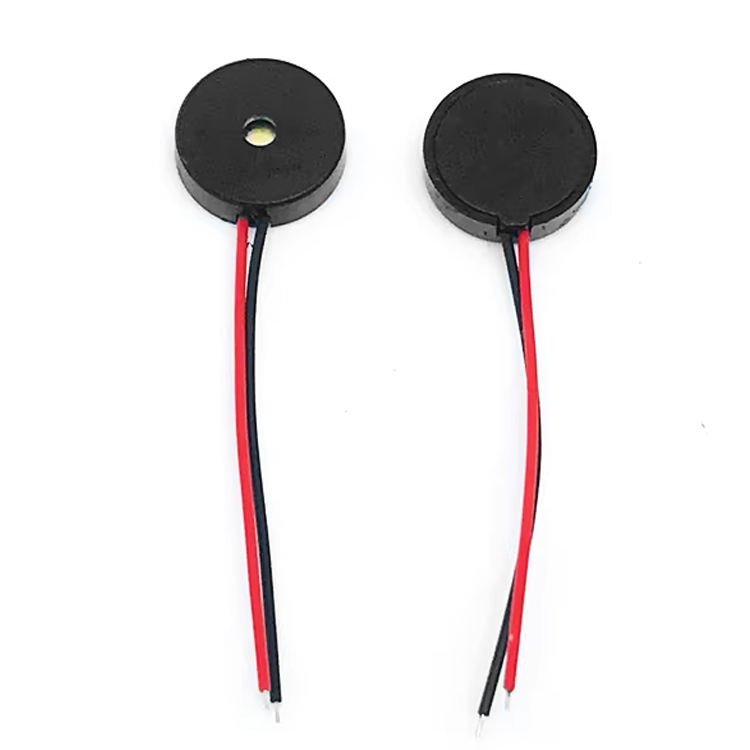

Piezo Passive Buzzer YN-YDW10025-4012W | 10*2.5mm | 3/5/12V | ≤5mA | ≥70dB | 1-25V | -20~+70℃ | 0.3g | / | / | / |
 |

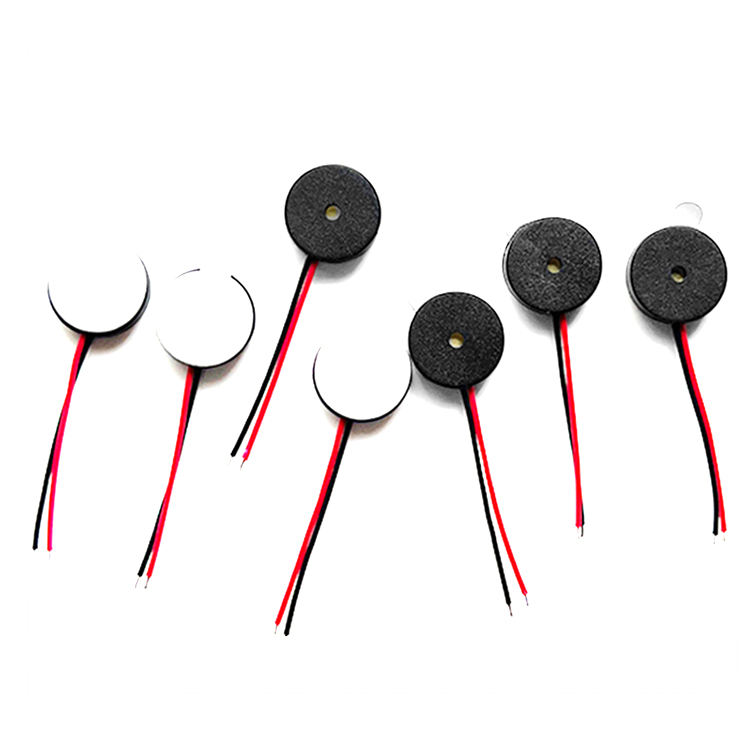

Piezo Passive Buzzer YN-YDW13025-4012W30 | 13*2.5mm | 3/5/12V | ≤5mA | ≥70dB | 2~25V | -10~+60℃ | 0.5g | / | / | / |
